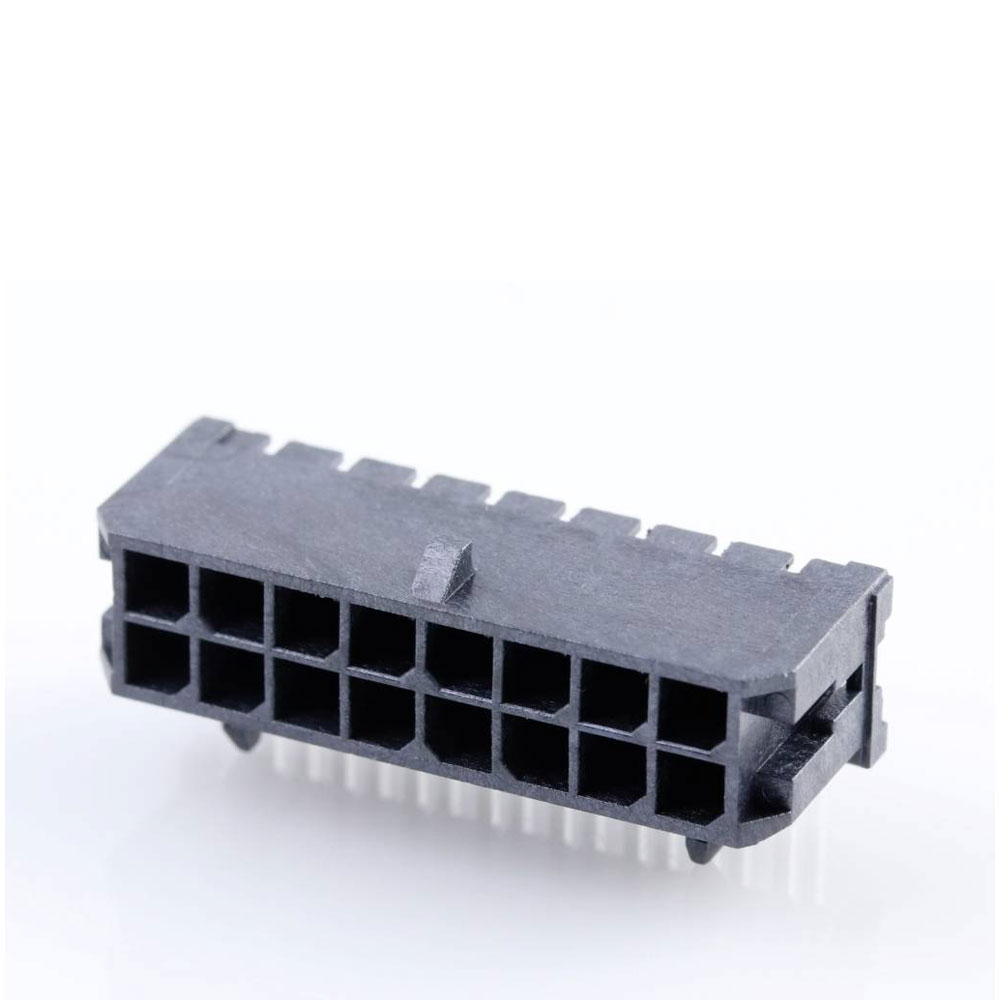

Molex 430451600 Micro-fit Header 16 Pins 3mm Pitch Dual Row Right-angle

Molex
Order Code:

05-3679

Brand: Molex MPN: 430451600 EAN-13: 2050007113096

Discontinued


The Molex 430451600 is a built-in pin strip (standard) with 16 pins and a contact spacing of 3 mm, ideal for electrical connections. Manufactured by Molex, this component is housed in a tray for protection and organised usage. Typical applications include use in electronic devices and circuit boards for efficient and reliable connectivity.
No. of Rows 2
No. of Ways 16
Contact Finish Brass
Board contact surface Tin
Case Material High temperature resistant thermoplastic
Connection Soldering
Connector coating thickness 0.254µm
Connector contact surface Tin
Connector orientation Parallel (to the PCB)
CS 3mm
Engineering Part No 43045-1600
Engineering Series Name MICRO-FIT HDR ASSY
Engineering Series No 43045
Factory colour Black
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute Molex MOL Power & Signal Sol.
Nominal Current 8.5A
Nominal current - rounded value 8.5A
Nominal Voltage 600V
Packaging Type Tray
Type Built-in pin strip (standard)
