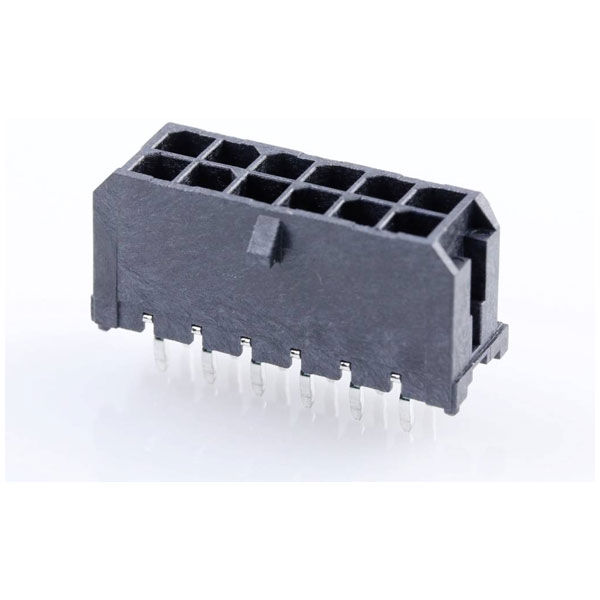

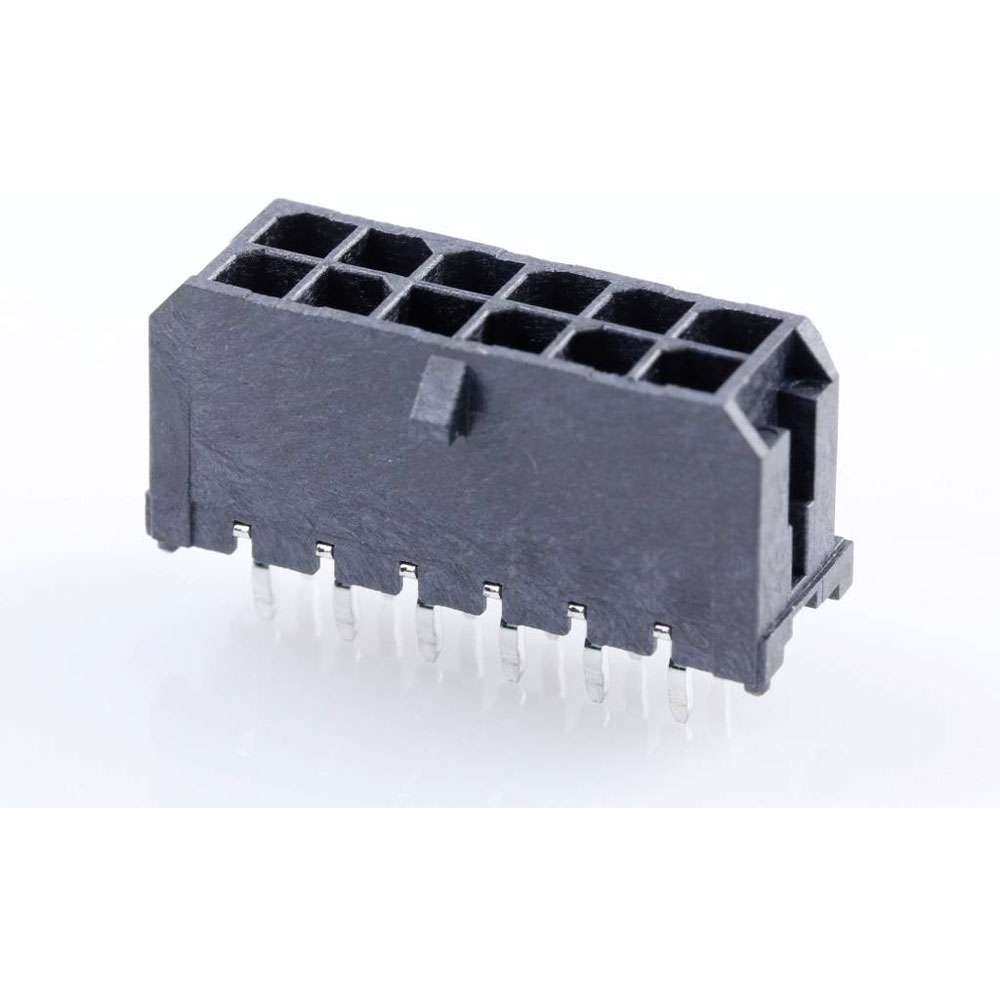

Molex 430451212 Micro-fit 3.0 Header 3mm Pitch 12 Pin Dual Row Black

Molex
Order Code:

05-3675

Brand: Molex MPN: 430451212 EAN-13: 2050007112907
Qty Unit Price (Ex VAT)
3+ £2.01
100+ £1.71
375+ £1.65
1500+ £1.44
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
235 in stock, despatched in 3 working days

The Molex built-in pin strip (standard) with part number 430451212 features 12 pins with a contact spacing of 3 mm. Manufactured by Molex, this component is typically used in electronic and electrical applications for reliable connections on printed circuit boards. It is supplied as a single piece in a tray, ideal for precise industrial or consumer electronic assembly.
Board contact surface Tin
Case Material High temperature resistant thermoplastic
Connection Print
Connector coating thickness 0.254µm
Connector contact surface Tin
Connector orientation Perpendicular (to the PCB)
Contact Material Brass
CS 3mm
Engineering Part No 43045-1212
Engineering Series Name MICRO-FIT HDR ASSY
Engineering Series No 43045
Factory colour Black
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute Molex MOL Power & Signal Sol.
Nominal Current 8.5A
Nominal current - rounded value 8.5A
Nominal Voltage 600V
Number of Rows 2
Packaging Type Tray
Total number of pins 12
Type Built-in pin strip (standard)
