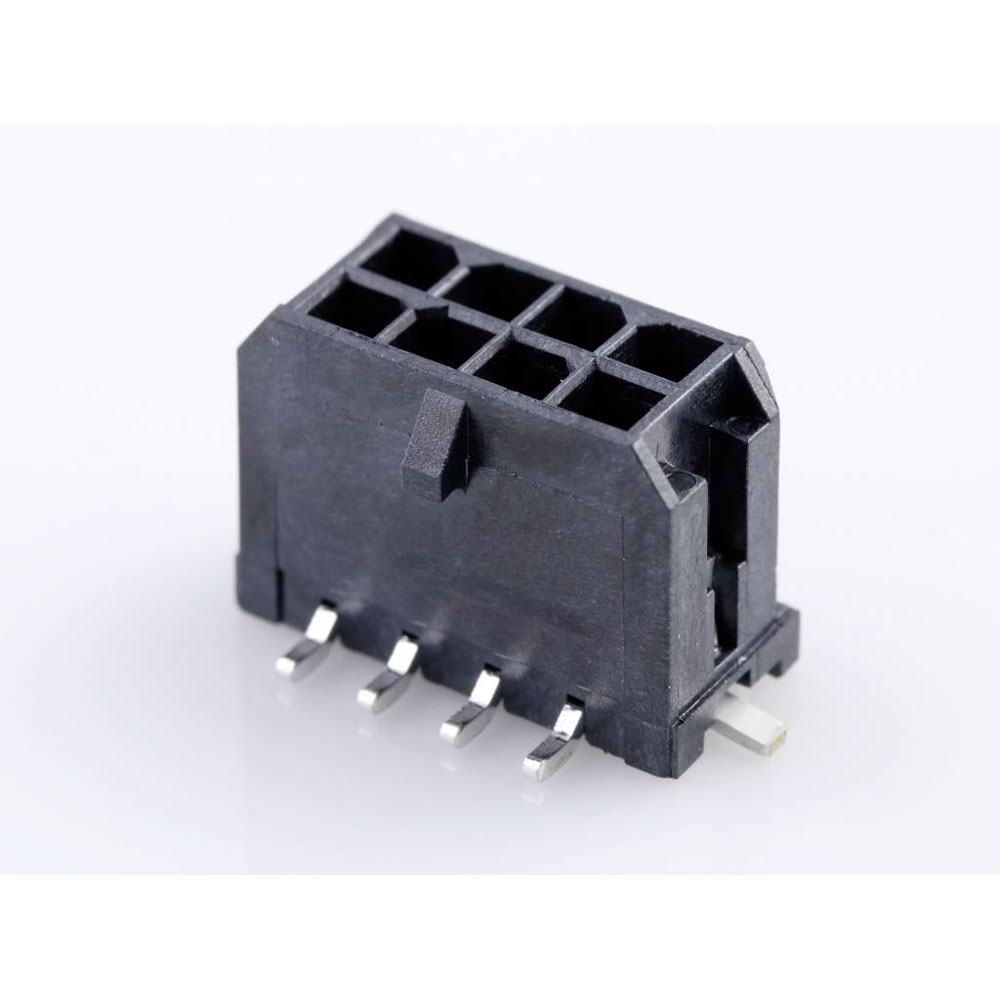

Molex 430450818 Micro-fit 3.0 Pin Strip 8 Pins 3mm Pitch Tape And Reel

Molex
Order Code:

05-3670

Brand: Molex MPN: 430450818 EAN-13: 2050009142193
Qty Unit Price (Ex VAT)
2+ £1.99
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
185 in stock, despatched in 3 working days

Molex manufactures the Built-in pin strip (standard) with 8 pins and a contact spacing of 3 mm. This pin strip, listed as part number 430450818, is available in a full reel packaging suitable for automated assembly processes. It is typically used in electronic devices where reliable connection and compact spacing are crucial.
Board contact surface Tin
Case Material High temperature resistant thermoplastic
Connection SMT
Connector coating thickness 0.254µm
Connector contact surface Tin
Connector orientation Perpendicular (to the PCB)
Contact Material Brass
CS 3mm
Factory colour Black
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute MOL Power & Signal Sol.
Nominal Current 8.5A
Nominal current - rounded value 8.5A
Nominal Voltage 600V
Number of Rows 2
Packaging Type Tape on Full reel
Total number of pins 8
Type Built-in pin strip (standard)
