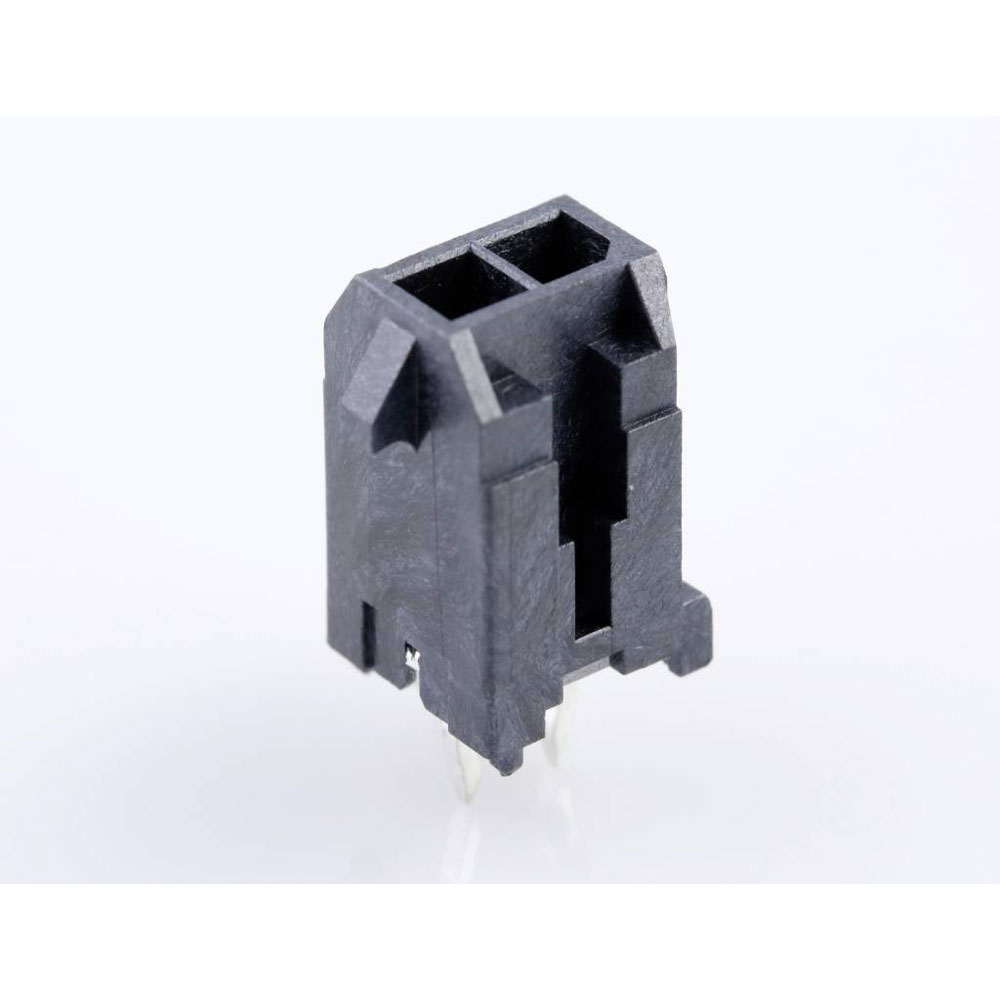

Molex 430450212 Micro-fit 3.0 Header 3mm Dual Row 2 Circuits 3mm Pitch

Molex
Order Code:

05-3654

Brand: Molex MPN: 430450212 EAN-13: 2050007112129
Qty Unit Price (Ex VAT)
10+ £0.672
100+ £0.586
375+ £0.578
1500+ £0.566
3000+ £0.560
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,151 in stock, despatched in 3 working days

The Molex built-in pin strip (standard) features two pins with a contact spacing of 3 mm and is supplied in a tray. This component is ideal for providing reliable connections in electronic assemblies. Typical applications include use in circuit boards and electrical connectors.
Board contact surface Tin
Case Material High temperature resistant thermoplastic
Connection Print
Connector coating thickness 0.254µm
Connector contact surface Tin
Connector orientation Perpendicular (to the PCB)
Contact Material Brass
CS 3mm
Engineering Part No 43045-0212
Engineering Series Name MICRO-FIT HDR ASSY
Engineering Series No 43045
Factory colour Black
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute Molex MOL Power & Signal Sol.
Nominal Current 8.5A
Nominal current - rounded value 8.5A
Nominal Voltage 600V
Number of Rows 2
Packaging Type Tray
Total number of pins 2
Type Built-in pin strip (standard)
