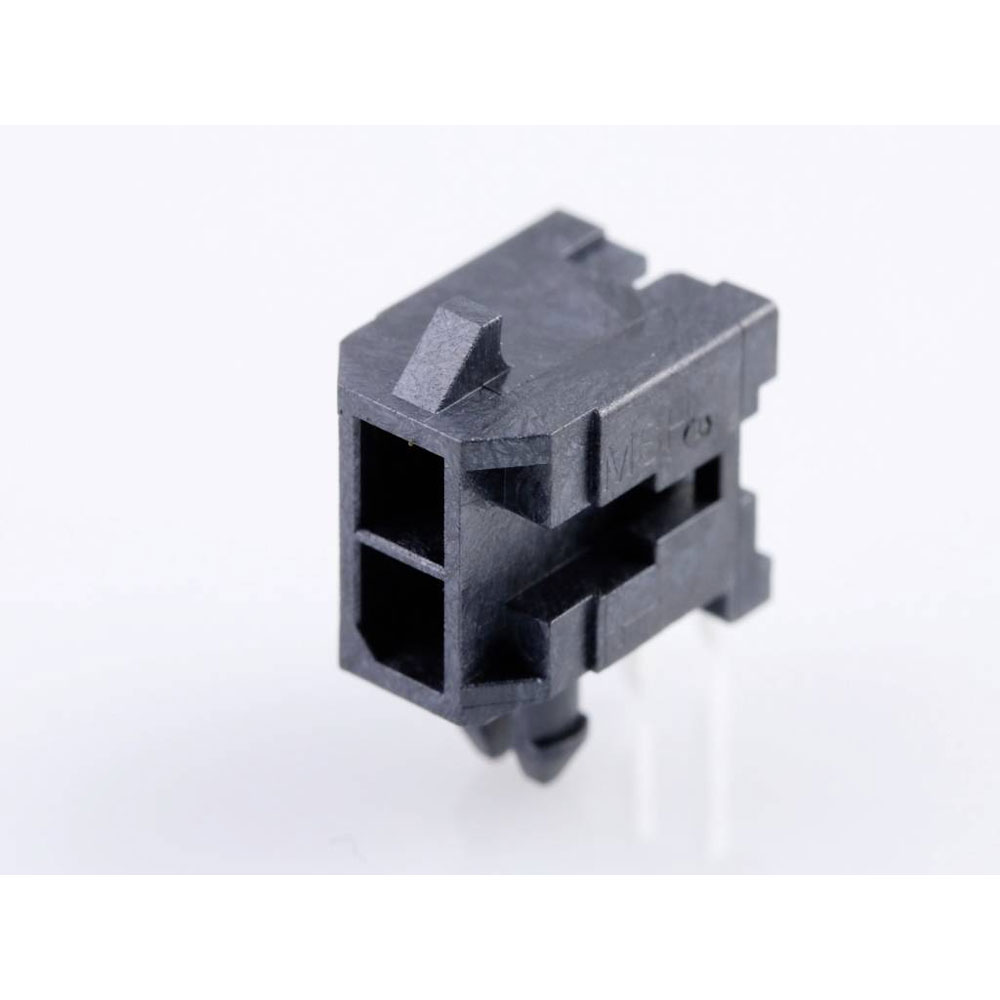

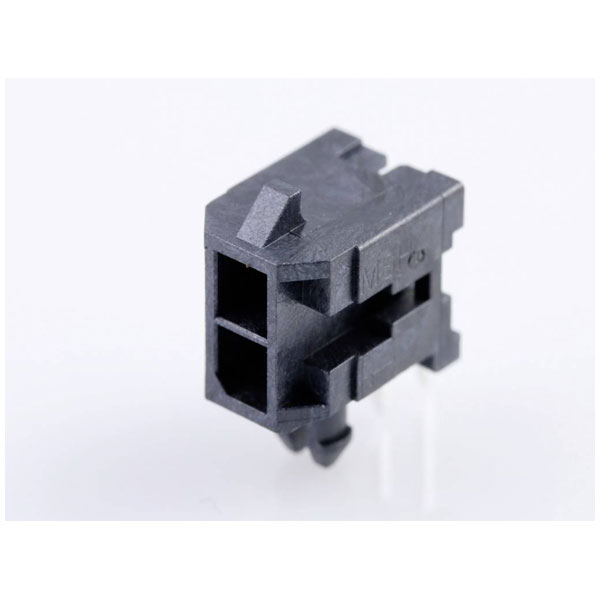

Molex 430450200 Micro-fit 3.0 Header 2 Pins 3mm Pitch PCB Lock

Molex
Order Code:

05-3653

Brand: Molex MPN: 430450200 EAN-13: 2050007112068
Qty Unit Price (Ex VAT)
5+ £0.720
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
742 available to back orderBack-order availability date - 10/01/2026

The Molex Built-in pin strip features two pins with a contact spacing of 3 mm, designed for efficient electronic connections. It is ideal for use in compact electronic devices requiring reliable and precise connectivity. Common applications include circuit boards within consumer electronics and industrial equipment.
No. of Rows 2
No. of Ways 2
Contact Finish Brass
Board contact surface Tin
Case Material High temperature resistant thermoplastic
Connection Soldering
Connector coating thickness 0.254µm
Connector contact surface Tin
Connector orientation Parallel (to the PCB)
CS 3mm
Engineering Part No 43045-0200
Engineering Series Name MICRO-FIT HDR ASSY
Engineering Series No 43045
Factory colour Black
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute Molex MOL Power & Signal Sol.
Nominal Current 8.5A
Nominal current - rounded value 8.5A
Nominal Voltage 600V
Packaging Type Tray
Type Built-in pin strip (standard)
