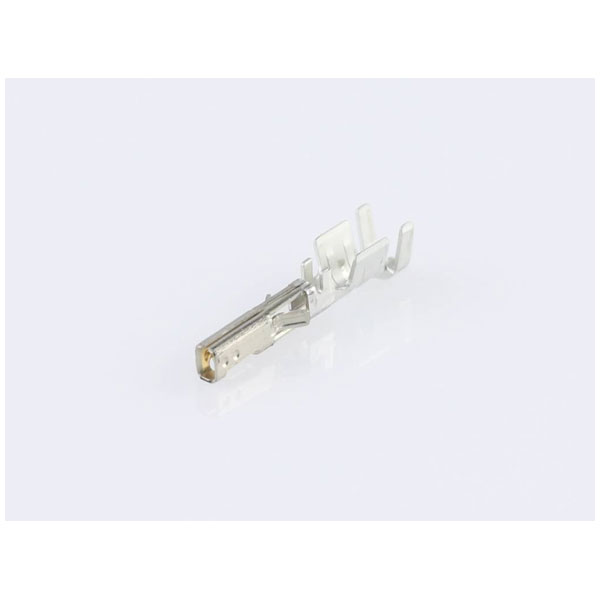

Molex 430300002 Micro-fit Terminal Female Gold Plated 20-24 AWG

Molex
Order Code:

05-3627

Brand: Molex MPN: 430300002 EAN-13: 2050009142100
Qty Unit Price (Ex VAT)
100+ £0.077
24000+ £0.069
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
14,808 in stock, despatched in 4 working days

Molex's Micro Fit 430300002 is a crimp contact expertly designed for robust electrical connections. With high-density performance, it is ideal for use in compact spaces where efficient power transfer is needed. Suitable for harness manufacturers, this contact piece ensures reliability in both consumer electronics and automotive applications.
Type Crimp contact
Wire Gauge 24 - 20
Application Power, Wire-to-Board, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
China ro h s status Compliant per SJ/T 11365-2006
Connector Type Socket
Contact Finish Phosphor bronze
Current maximum per contact 7.0A
Delivery unit 84000
Design registration eligibility true
Durability mating cycles max 30
ELV status Compliant per 2000/53/EC
Engineering number 43030-0002
First published date 2007-05-16
G a d s l/ i m d s Compliant with Exemption 44; 33; 34
Gender Female
H f l h status Low-Halogen per IEC 61249-2-21
Material metal Phosphor Bronze
Material plating mating Gold
Material plating termination Tin
Material type Finished Goods
Minimum line quantity 84000
Misc Attribute MOL Power & Signal Sol.
Net weight 97.000/mg
Packaging Type Tape on Full reel
Plating min mating 0.381µm
Plating min termination 2.540µm
Primary pack qty 12000
Product name Micro-Fit 3.0
Product number display 430300002
Product number hyphen 43030-0002
Product number sap 0430300002
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 43030
Ro h s status Compliant per EU 2015/863
Sampleable True
Taxonomy Crimp Terminals
Termination interface style Crimp or Compression
Test current 8.5A
Upc 800753683662
Wire insulation diameter 1.85mm max.
Wire size awg 20, 22, 24
