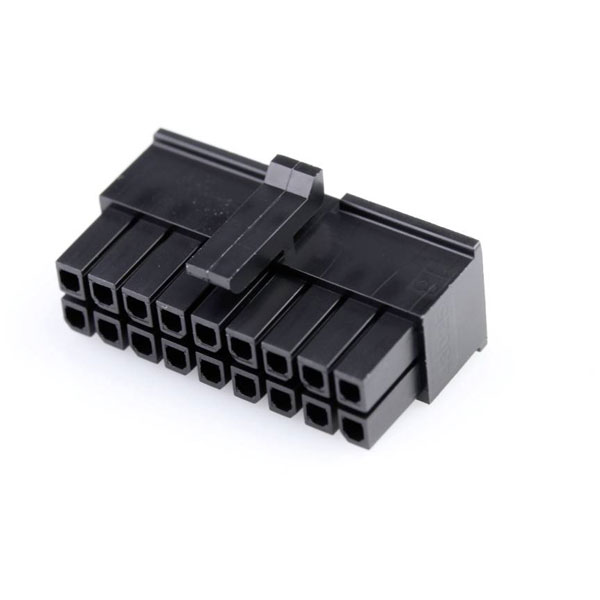

The Molex socket housing cable, part number 430251800, features 18 pins with a contact spacing of 3 mm, providing secure and reliable connections. Designed for use in electronic and electrical applications, it is suitable for various interconnect requirements. This component is ideal for environments requiring durable and versatile cable management solutions.
| Type |
Socket housing cable |
| Pitch |
3.00mm |
| Number of Ways |
18 |
| Number of Rows |
2 |
| Application |
Power, Wire-to-Board, Wire-to-Wire |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Case Material |
Nylon (NL) |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits maximum |
18 |
| Color resin |
Black |
| Colour |
Black |
| Connector Type |
Socket |
| CS |
3mm |
| Csa |
LR19980 |
| Delivery unit |
1000 |
| Design registration eligibility |
true |
| Elv status |
Not Relevant |
| Engineering number |
43025-1800 |
| Engineering Part No |
43025-1800 |
| Engineering Series Name |
MICRO-FIT RECEPT HSG |
| Engineering Series No |
43025 |
| First published date |
2007-05-16 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Receptacle |
| Glow wire capable |
No |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
No |
| Lock to mating part |
Yes |
| Material resin |
Nylon |
| Material type |
Finished Goods |
| Max. temperature |
+105°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
6000 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
1.520/g |
| Packaging Type |
Bag |
| Panel mount |
No |
| Polarized to mating part |
Yes |
| Primary pack qty |
1000 |
| Product name |
Micro-Fit 3.0 |
| Product number display |
430251800 |
| Product number hyphen |
43025-1800 |
| Product number sap |
0430251800 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
43025 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Stackable |
No |
| Taxonomy |
Connector Housings |
| Temperature range operating |
-40° to +105°C |
| Ul |
E29179 |
| Upc |
800754369053 |
