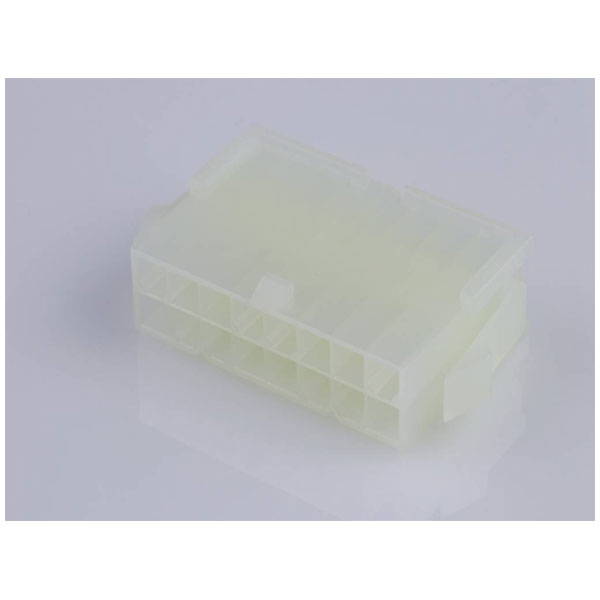

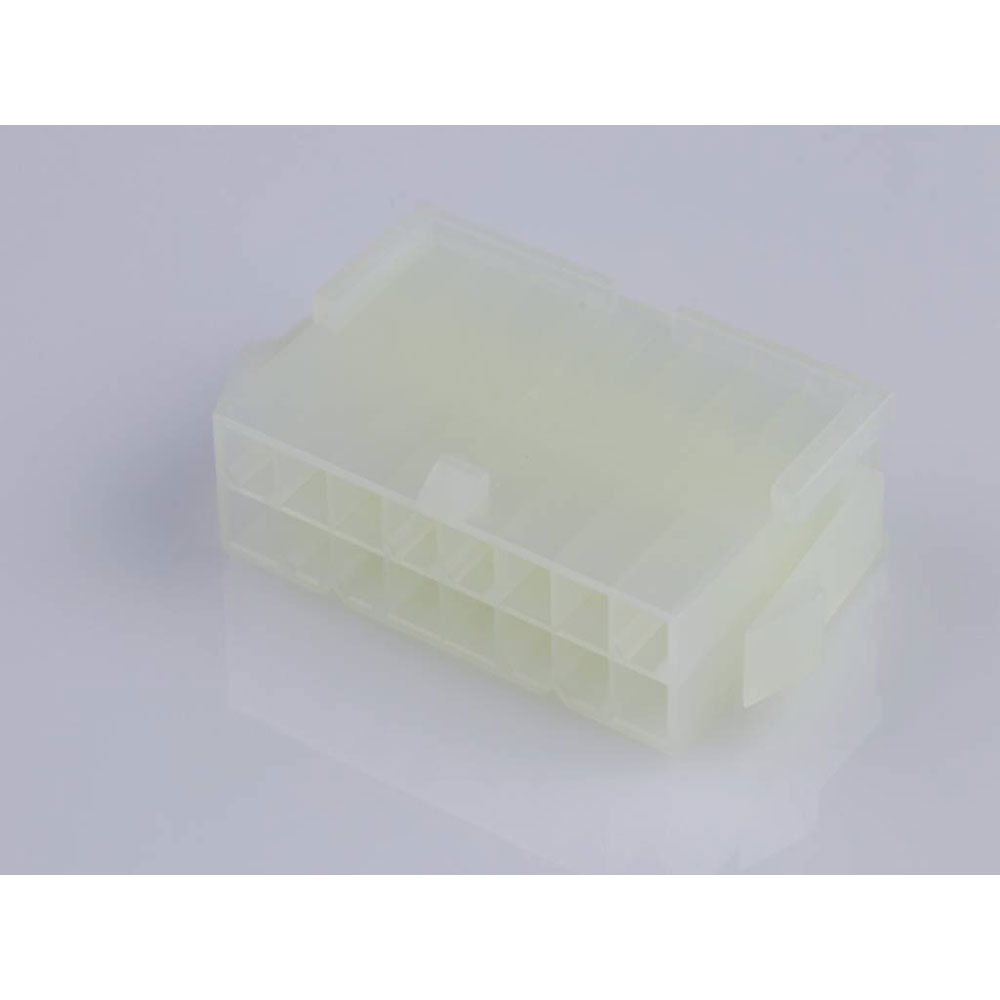

Molex 39012161 Mini-fit Jr. 16-pin Plug Housing 4.2mm Spacing Natural

Molex
Order Code:

05-3469

Brand: Molex MPN: 39012161 EAN-13: 2050007106746
Qty Unit Price (Ex VAT)
10+ £0.576
100+ £0.538
375+ £0.519
1500+ £0.431
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
293 in stock, despatched in 4 working days

Molex's socket housing cable 39012161 features 16 pins with a contact spacing of 4.2 mm. This component is ideal for secure electrical connections in various electronic or automotive applications. Typically supplied in a single piece bag, it ensures reliable and efficient connectivity solutions.
Type Socket housing cable
Pitch 4.20mm
Number of Ways 16
Number of Rows 2
Application Power, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
Case Material Nylon (NL)
China ro h s status Compliant per SJ/T 11365-2006
Circuits maximum 16
Color resin Natural
Colour Ecru
Comments Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. See Molex product specification PS-45750-001 for additional current derating information.
Connector Type Plug
CS 4.2mm
Csa LR19980
Delivery unit 1200
Design registration eligibility false
Elv status Not Relevant
Engineering number 5559-16P
Engineering Part No 5559-16P
Engineering Series Name MINIFIT JR PLUG HSG
Engineering Series No 05559
First published date 2007-05-16
Flammability 94V-2
G a d s l/ i m d s Not Relevant
Gender Plug
Glow wire capable No
H f l h status Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lock to mating part Yes
Material resin Nylon
Material type Finished Goods
Max. temperature +105°C
Min. temperature -40°C
Minimum line quantity 6000
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 4.782/g
Nominal Current 13A
Nominal current - rounded value 13A
Packaging Type Bag
Panel mount Yes
Pitch termination interface 4.20mm
Polarized to mating part Yes
Product name Mini-Fit Jr.
Product number display 39012161
Product number hyphen 39-01-2161
Product number sap 0039012161
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 5559
Ro h s status Compliant per EU 2015/863
Sampleable True
Stackable No
Taxonomy Connector Housings
Temperature range operating -40° to +105°C
Ul E29179
Upc 800753583979
