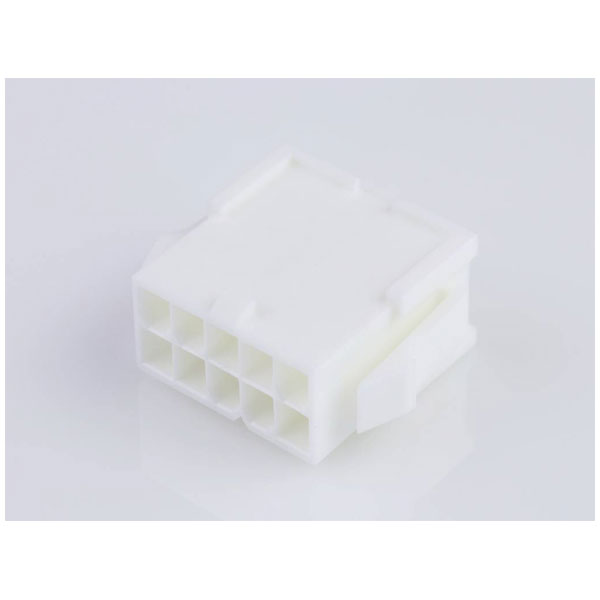

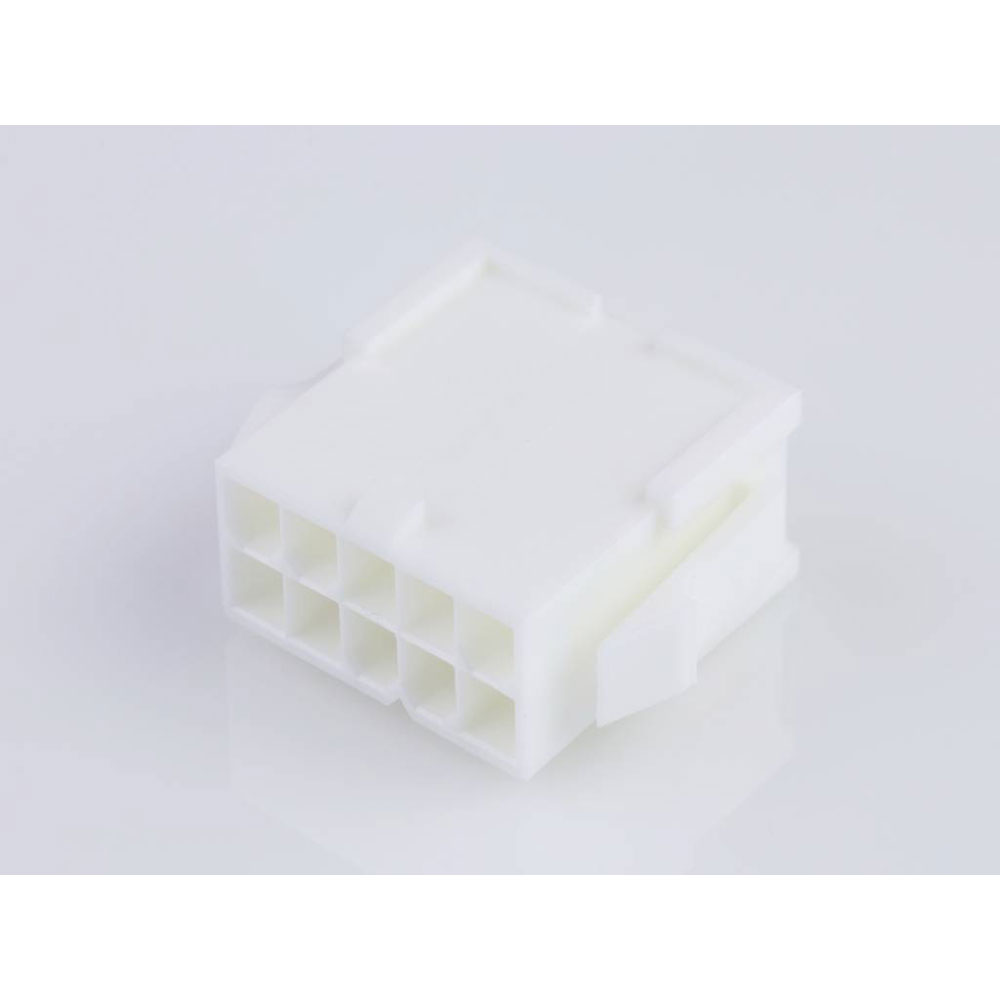

Molex 39012106 Mini-fit Jr Socket Housing 10 Pins 4.2 Mm Spacing

Molex
Order Code:

05-3460

Brand: Molex MPN: 39012106 EAN-13: 2050007106654
Qty Unit Price (Ex VAT)
10+ £0.588
100+ £0.487
375+ £0.468
1500+ £0.389
3000+ £0.373
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
200 in stock, despatched in 4 working days

The Molex 39012106 is a socket housing cable with 10 pins and a 4.2 mm contact spacing. Manufactured by Molex, it is typically used in electronic and electrical applications for reliable connections. This part's configuration makes it suitable for secure and precise wiring solutions.
Type Socket housing cable
Pitch 4.20mm
Number of Ways 10
Number of Rows 2
Application Power, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
Case Material Nylon (NL)
China ro h s status Compliant per SJ/T 11365-2006
Circuits maximum 10
Color resin Natural
Colour Ecru
Comments Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. See Molex product specification PS-45750-001 for additional current derating information.
Connector Type Plug
CS 4.2mm
Csa LR19980
Delivery unit 2000
Design registration eligibility false
Elv status Compliant per 2000/53/EC
Engineering number 5559-10P-210
Engineering Part No 5559-10P-210
Engineering Series Name MINIFIT JR PLUG HSG
Engineering Series No 05559
First published date 2007-05-16
Flammability 94V-0
G a d s l/ i m d s Not Relevant
Gender Plug
Glow wire capable No
H f l h status Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lock to mating part Yes
Material resin Nylon
Material type Finished Goods
Max. temperature +105°C
Min. temperature -40°C
Minimum line quantity 6000
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 3291.600/mg
Nominal Current 13A
Nominal current - rounded value 13A
Packaging Type Bag
Panel mount Yes
Pitch termination interface 4.20mm
Polarized to mating part Yes
Product name Mini-Fit Jr.
Product number display 39012106
Product number hyphen 39-01-2106
Product number sap 0039012106
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 5559
Ro h s status Compliant per EU 2015/863
Sampleable True
Stackable No
Taxonomy Connector Housings
Temperature range operating -40° to +105°C
Ul E29179
Upc 800753757684
