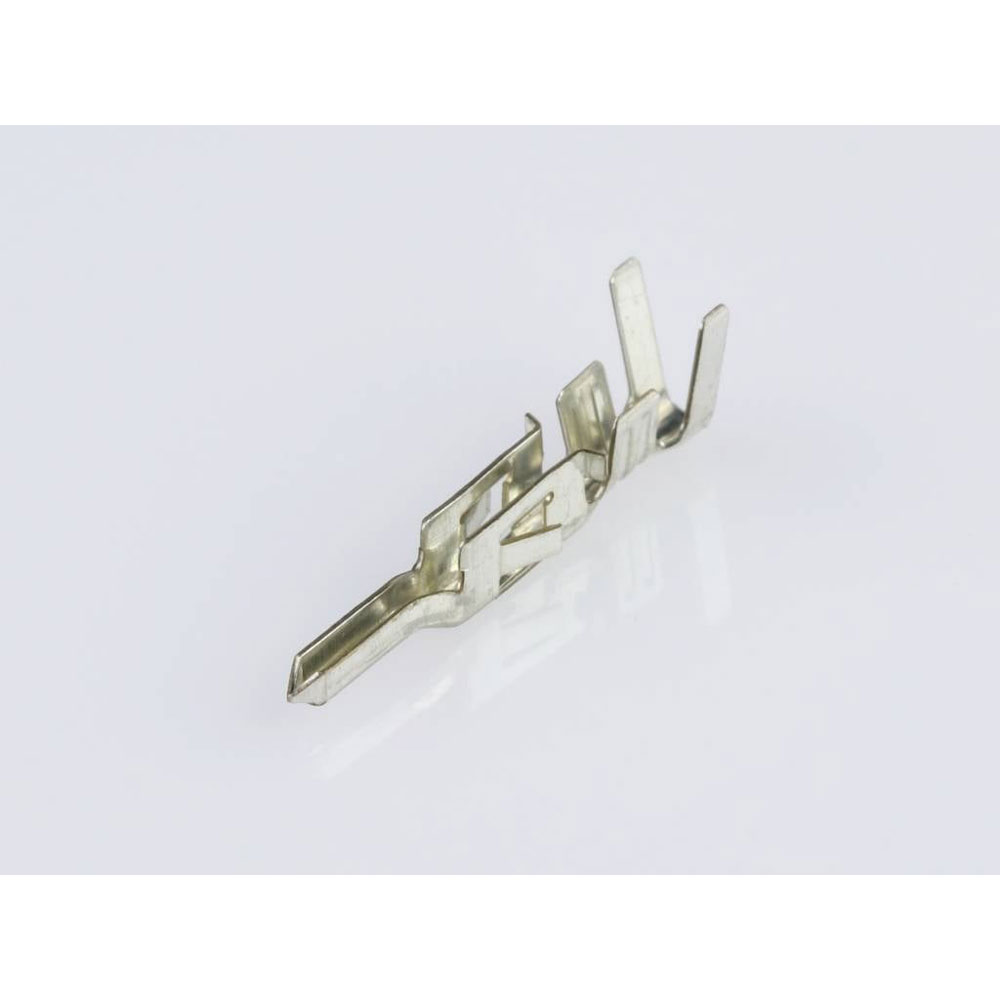

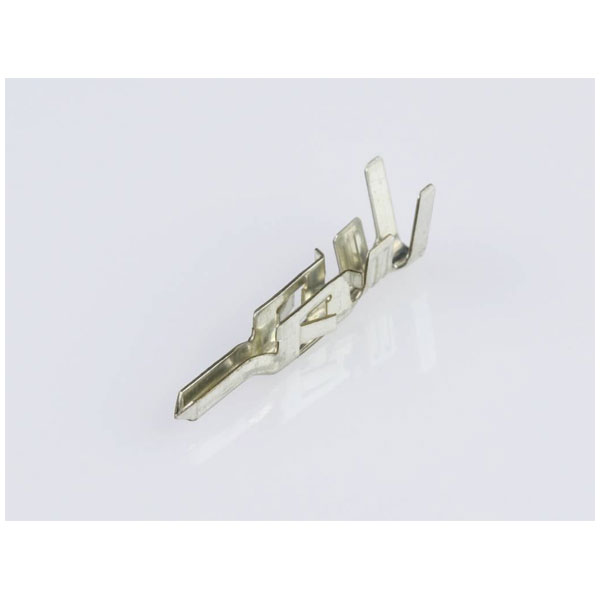

Molex's Mini Fit 39000081 is a crimp contact designed for secure electrical connections. This component features a durable construction ideal for use in electrical housings and connectors. It is typically used in automotive, telecommunications, and consumer electronics applications.
| Type |
Crimp contact |
| Pin or Socket |
Male |
| Wire Gauge |
22 - 16 |
| Application |
Power, Wire-to-Wire |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Connector Type |
Plug |
| Contact Finish |
Brass tin plated |
| Current maximum per contact |
9.0A |
| Delivery unit |
96000 |
| Design registration eligibility |
false |
| Durability mating cycles max |
30 |
| ELV status |
Compliant per 2000/53/EC |
| Engineering number |
5558T3 |
| First published date |
2007-05-16 |
| G a d s l/ i m d s |
Compliant with Exemption 44 |
| Gender |
Male |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Material metal |
Brass |
| Material plating mating |
Matte Tin |
| Material plating termination |
Matte Tin |
| Material type |
Finished Goods |
| Minimum line quantity |
96000 |
| Misc Attribute |
MOL Power & Signal Sol. |
| Net weight |
0.080/g |
| Packaging Type |
Tape on Full reel |
| Plating min mating |
0.900µm |
| Plating min termination |
0.900µm |
| Primary pack qty |
4000 |
| Product name |
Mini-Fit |
| Product number display |
39000081 |
| Product number hyphen |
39-00-0081 |
| Product number sap |
0039000081 |
| Rated voltage |
600V |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
5558 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Taxonomy |
Crimp Terminals |
| Termination interface style |
Crimp or Compression |
| Test current |
9A |
| Upc |
800753727083 |
| Voltage maximum |
600V |
| Wire insulation diameter |
1.80-3.10mm |
| Wire size awg |
16, 22+18, 20+20, 22+20 |
