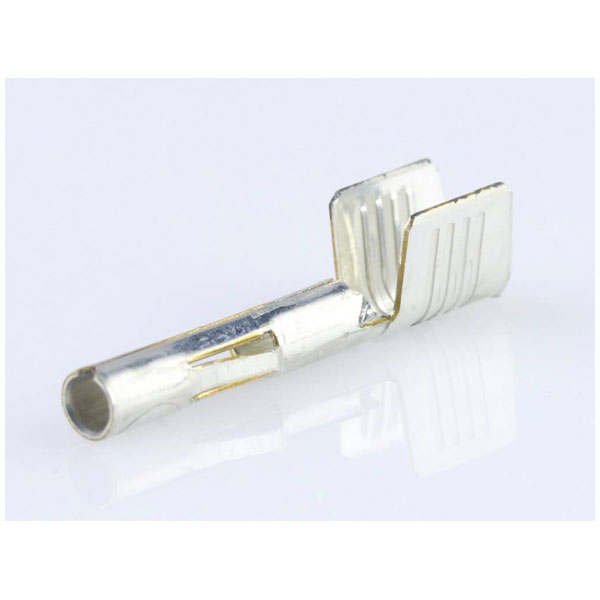

Molex crimp contact 366640002 is designed for secure and reliable electrical connections. This component is typically used in automotive and industrial applications. It is known for its durability and precise fit.
| Type |
Crimp contact |
| Pin or Socket |
Female |
| Wire Gauge |
12 - 10 |
| Application |
Power, Wire-to-Board, Wire-to-Wire |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Comments |
Maximum current per contact 20A if used with 36663 and 36664 terminal |
| Connector cross section |
5.25mm² |
| Connector Type |
Socket |
| Contact Finish |
Brass tin plated |
| Current maximum per contact |
20.0A |
| Delivery unit |
5000 |
| Design registration eligibility |
true |
| Duration at max process temperature seconds |
10 |
| ELV status |
Not Relevant |
| Engineering number |
36664-0002 |
| Engineering Part No |
36664-0002 |
| Engineering Series Name |
MLX Males 10-12AWG |
| Engineering Series No |
36663 |
| First published date |
2007-05-16 |
| G a d s l/ i m d s |
Compliant with Exemption 44 |
| Gender |
Female |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Lead free process capability |
WAVE |
| Material metal |
Brass |
| Material plating mating |
Tin |
| Material plating termination |
Tin |
| Material type |
Semi-finished product |
| Minimum line quantity |
10000 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
0.405/g |
| Packaging Type |
Bag |
| Plating min mating |
0.508µm |
| Plating min termination |
0.508µm |
| Primary pack qty |
5000 |
| Process temperature max c |
260 |
| Product name |
MLX |
| Product number display |
366640002 |
| Product number hyphen |
36664-0002 |
| Product number sap |
0366640002 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
36663 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Taxonomy |
Crimp Terminals |
| Termination interface style |
Crimp or Compression |
| Test current |
20A |
| Upc |
822348518142 |
| Wire insulation diameter |
5.08mm max. |
| Wire size awg |
10, 12 |
| Wire size mm |
3.30, 5.25 |
