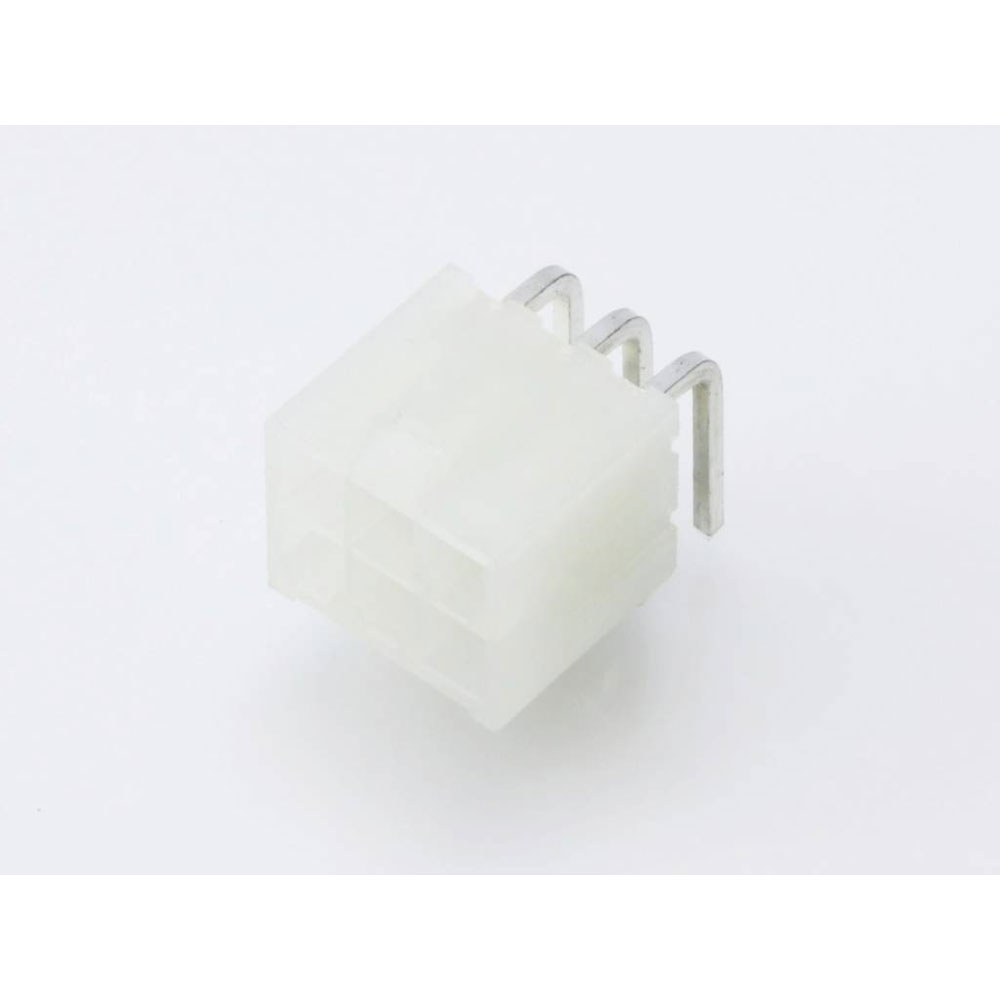

Molex manufactures a built-in pin strip featuring six pins with a contact spacing of 4.2 mm. This standard pin strip is ideal for creating reliable connections in electronic projects and devices. It is commonly used in circuit boards where compact, efficient connectivity is needed.
| Pitch |
2mm |
| No. of Rows |
1 |
| No. of Ways |
6 |
| Application |
Power, Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Board contact surface |
Tin |
| Breakaway |
No |
| Case Material |
Nylon (NL) |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
6 |
| Circuits maximum |
6 |
| Coating thickness (PCB side) |
5.08µm |
| Color resin |
Natural |
| Comments |
Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 Mini-Fit Plus HCS Crimp Terminal Crimped to 16 AWG wire. See Molex product specification PS-45750-001 for additional current de-rating information. |
| Component type |
PCB Header |
| Connection |
Soldering |
| Connector coating thickness |
5.08µm |
| Connector contact surface |
Tin |
| Connector orientation |
Parallel (to the PCB) |
| CS |
4.2mm |
| Csa |
LR19980 |
| Current maximum per contact |
13.0A |
| Delivery unit |
3500 |
| Design registration eligibility |
true |
| Durability mating cycles max |
30 |
| ELV status |
Not Relevant |
| Engineering number |
353180620 |
| Engineering Series Name |
NEW MINIFIT R/A WAFE |
| Engineering Series No |
35318 |
| Factory colour |
Ecru |
| First mate last break |
No |
| First published date |
2007-06-08 |
| G a d s l/ i m d s |
Compliant with Exemption 44 |
| Glow wire capable |
No |
| Guide to mating part |
No |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
No |
| Lock to mating part |
Yes |
| Material plating mating |
Tin |
| Material plating termination |
Tin |
| Material resin |
Nylon |
| Material type |
Finished Goods |
| Maximum Temperature |
+105°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
7000 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
2.173/g |
| Nominal Current |
13A |
| Nominal current - rounded value |
13A |
| Nominal Voltage |
250V |
| Number of Rows |
2 |
| Orientation |
Right Angle |
| Packaging Type |
Bag |
| Pc tail length |
4.00mm |
| Pcb locator |
No |
| Pcb retention |
No |
| Pcb thickness recommended |
1.60mm |
| Pitch mating interface |
4.20mm |
| Plating min mating |
5.080µm |
| Plating min termination |
5.080µm |
| Polarized to pcb |
No |
| Primary pack qty |
500 |
| Product name |
Mini-Fit |
| Product number display |
353180620 |
| Product number hyphen |
35318-0620 |
| Product number sap |
0353180620 |
| Reach status |
Not Contained per D(2025)4165-DC (25 June 2025) |
| Reference series |
35318 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Shrouded |
Partial |
| Stackable |
No |
| Taxonomy |
PCB Headers and Receptacles |
| Temperature range operating |
-40° to +105°C |
| Termination interface style |
Through Hole |
| Type |
Built-in pin strip (standard) |
| Ul |
E29179 |
| Upc |
800754376914 |
| Voltage maximum |
250V |
