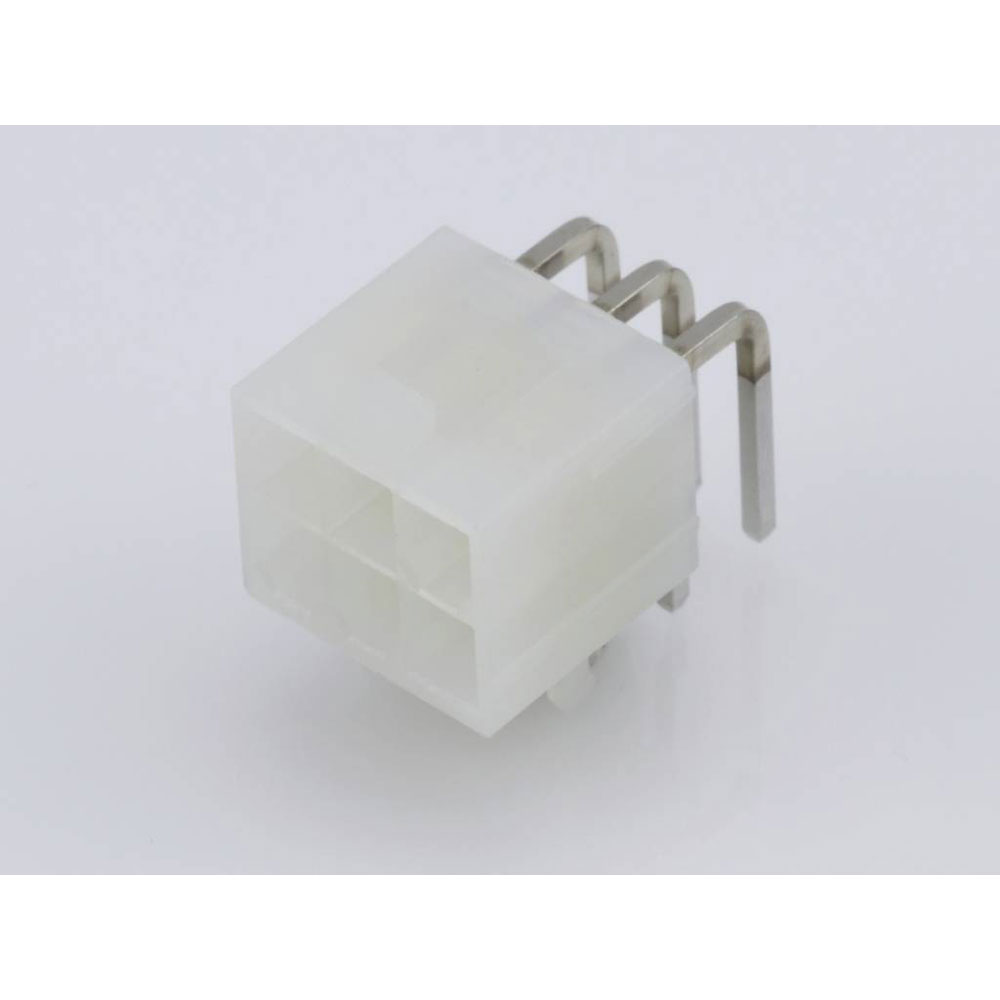

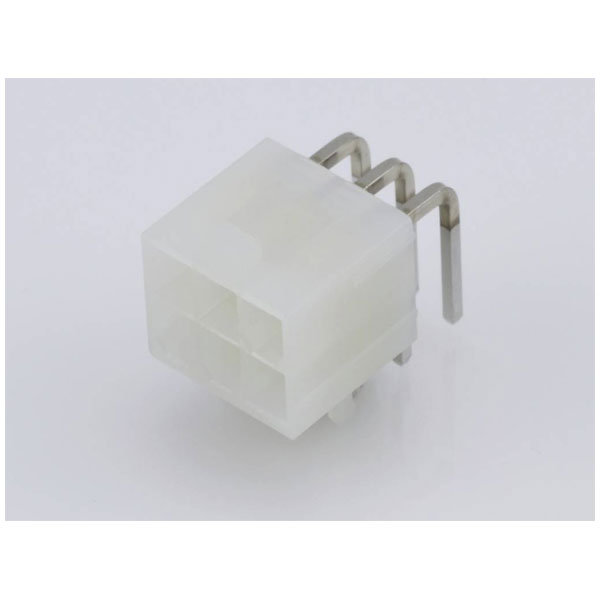

Molex 26013116 Mini-fit Jr. Header Right-angle 6 Circuits Gold Plated

Molex
Order Code:

05-3307

Brand: Molex MPN: 26013116 EAN-13: 2050007328223
Qty Unit Price (Ex VAT)
3+ £1.40
575+ £1.26
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
76 in stock, despatched in 4 working days

The Molex Pin housing PCB 26013116 is designed for secure connections in electronic projects. Manufactured by Molex, it provides reliability and durability in electrical applications. Typically used in PCBs, it supports efficient housing and alignment of pins.
Type Pin housing PCB
Number of Rows 2
Application Power, Wire-to-Board
Base unit of measure PC
Base unit of measure desc piece
Breakaway No
China ro h s status Compliant per SJ/T 11365-2006
Circuits loaded 6
Circuits maximum 6
Color resin Natural
Comments Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 Mini-Fit Plus HCS Crimp Terminal Crimped to 16 AWG wire. See Molex Product specification PS-5556-001 for additional current de-rating information.
Component type PCB Header
Csa LR19980
Current maximum per contact 13.0A
Delivery unit 3680
Design registration eligibility false
Durability mating cycles max 30
Duration at max process temperature seconds 5
Elv status Not Relevant
Engineering number 5569-06A2GS2-T
Engineering Part No 5569-06A2GS2-T
Engineering Series Name MINIFIT JR RA HDR
Engineering Series No 05569
First mate last break No
First published date 2010-08-13
Flammability 94V-2
G a d s l/ i m d s Compliant with Exemption 44; 34; 33
Glow wire capable No
Guide to mating part No
H f l h status Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lead free process capability WAVE
Lock to mating part Yes
Material metal Brass
Material plating mating Gold
Material plating termination Matte Tin
Material resin Nylon
Material type Finished Goods
Max cycles at max process temperature 1
Minimum line quantity 3680
Net weight 2.164/g
Orientation Right Angle
Packaging Type Tray
Pc tail length 3.60mm
Pcb locator Yes
Pcb retention Yes
Pcb thickness recommended 1.78mm
Pitch mating interface 4.20mm
Pitch termination interface 4.20mm
Plating min mating 0.381µm
Plating min termination 2.540µm
Polarized to mating part Yes
Polarized to pcb Yes
Primary pack qty 115
Process temperature max c 240
Product name Mini-Fit Jr.
Product number display 26013116
Product number hyphen 26-01-3116
Product number sap 0026013116
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 5569
Ro h s status Compliant per EU 2015/863
Sampleable True
Shrouded Fully
Stackable No
Taxonomy PCB Headers and Receptacles
Temperature range operating -40° to +105°C
Termination interface style Through Hole
Ul E29179
Upc 884982063884
Voltage maximum 600V
