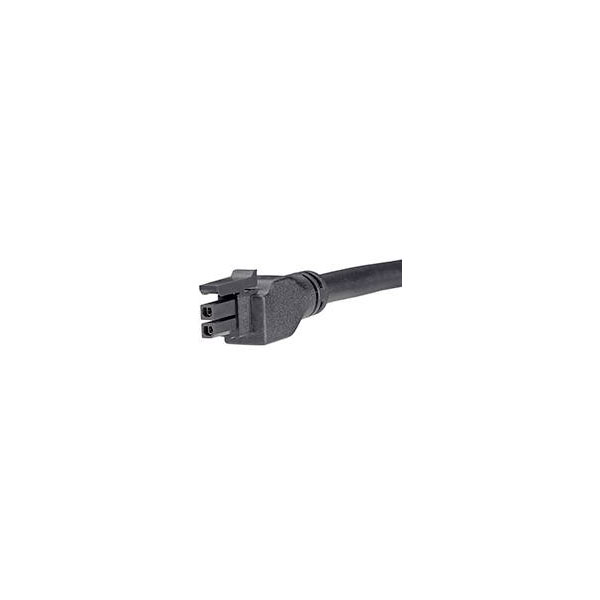

The Molex socket housing cable, model number 2451320220, is a high-quality electrical connector featuring 2 pins with a 3 mm contact spacing. Designed by Molex, this component is ideal for securely connecting wires in various electronic and electrical applications. The product is typically used in situations requiring reliable, compact, and precise electrical connections.
| Connector 1 |
Socket |
| Colour |
Black |
| Length |
2.00m |
| Type |
Socket housing cable |
| Application |
Power, Wire-to-Board, Wire-to-Wire |
| Assembly configuration |
Dual Ended Connectors |
| AWG max. |
20 |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Board contact surface |
Tin |
| Cable Length |
2.0m |
| Case Material |
Nylon (NL) |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
2 |
| Circuits maximum |
2 |
| Coating thickness (PCB side) |
1.016µm |
| Color resin |
Black |
| Connector coating thickness |
1.016µm |
| Connector contact surface |
Tin |
| Connector to connector |
Micro-Fit 3.0 Both Ends |
| Contact Material |
Phosphor bronze |
| CS |
3mm |
| Current maximum per contact |
5.5A |
| Delivery unit |
50 |
| Design registration eligibility |
true |
| Elv status |
Compliant per 2000/53/EC |
| Engineering Series Name |
Micro-fit,Overmolded |
| Engineering Series No |
245132 |
| First published date |
2016-09-27 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Female-Female |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Lock to mating part |
Yes |
| Material metal |
Phosphor Bronze |
| Material plating mating |
Tin |
| Material plating termination |
Tin |
| Material resin |
Nylon |
| Material type |
Finished Goods |
| Minimum line quantity |
500 |
| Net weight |
74.500/g |
| Nominal Current |
5.6A |
| Nominal Voltage |
300V AC |
| Number of Rows |
2 |
| Over molded |
Yes |
| Packaging Type |
Bag |
| Pitch mating interface |
3.00mm |
| Plating min mating |
1.016µm |
| Plating min termination |
1.016µm |
| Primary pack qty |
1 |
| Product name |
Micro-Fit 3.0 |
| Product number display |
2451320220 |
| Product number hyphen |
245132-0220 |
| Product number sap |
2451320220 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
245132 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
False |
| Singleended |
No |
| Taxonomy |
Power and Signal Cable Assemblies |
| Termination interface style |
Crimp or Compression |
| Total number of pins |
2 |
| Upc |
889056853880 |
| Voltage maximum |
300V AC |
| Wire cable type |
UL 2464 |
| Wire size awg |
20 |
