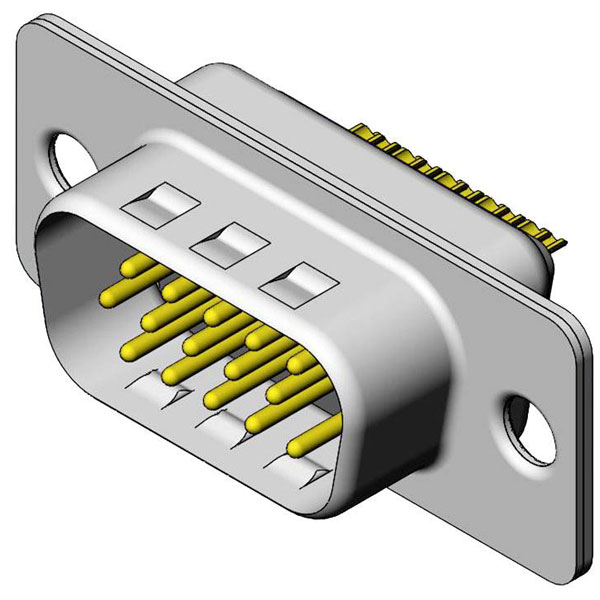

The Molex 1731130058 D-sub plug features 15 pins and is designed for soldering, making it suitable for reliable data transmission in electronic equipment. Known for its durability, this D-sub connector is commonly used in telecommunications and computer interfaces. Its robust construction ensures longevity and steady performance in various industrial applications.
| Type |
D-SUB plug |
| Plug / Socket |
Plug |
| Mounting Type |
Soldering |
| No. of Ways |
15 |
| Mounting Direction |
Straight |
| Connection Angle |
180° |
| Plating Material |
Gold on nickel |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
15 |
| Circuits maximum |
15 |
| Color resin |
Black |
| Contact Material |
Copper alloy |
| CS |
1.98mm |
| Current maximum per contact |
3.0A |
| Delivery unit |
200 |
| Design registration eligibility |
true |
| ELV status |
Not Relevant |
| Engineering number |
CT09-15P |
| Engineering Part No |
CT09-15P |
| Engineering Series Name |
FCT HD D-SUB |
| Engineering Series No |
173113 |
| Factory colour |
Black |
| First published date |
2019-05-24 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Male |
| H f l h status |
Not Reviewed per IEC 61249-2-21 |
| IP Rating |
IP20 |
| Magnetic |
Yes |
| Material contact |
Copper Alloy |
| Material resin |
PBT |
| Material shell |
Steel |
| Material type |
Finished Goods |
| Mating cycles |
50 |
| Minimum line quantity |
200 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
5.000/g |
| No. of Rows |
3 |
| Number of Rows |
3 |
| Packaging Type |
Tray |
| Panel mount |
Rear |
| Panel mount method |
Flange |
| Pcb locator |
No |
| Pcb retention |
No |
| Pitch mating interface |
1.98mm |
| Pitch termination interface |
1.98mm |
| Plating shell |
Nickel |
| Polarized to mating part |
Yes |
| Ports |
1 |
| Primary pack qty |
50 |
| Product name |
FCT Products |
| Product number display |
1731130058 |
| Product number hyphen |
173113-0058 |
| Product number sap |
1731130058 |
| Reach status |
Not Contained per D(2025)4165-DC (25 June 2025) |
| Reference series |
173113 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Shielded |
Yes |
| Taxonomy |
D-Sub Connectors |
| Temperature Range |
-55° - +105 °C.°C |
| Temperature range operating |
-55° to +105°C |
| Termination Style |
Solder Cup |
| Upc |
889056324410 |
| Waterproof dustproof |
No |
| Waterproof dustproof type |
IP20 |
| Wire size awg |
22 |
