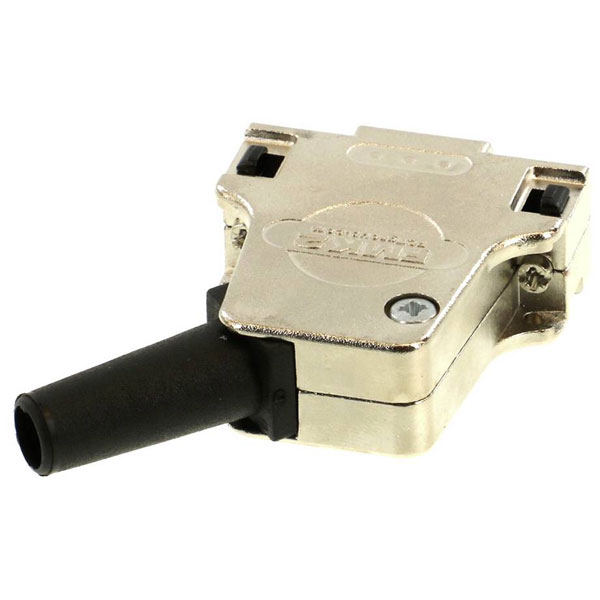

Molex 1731110061 D-sub Housing Backshell 45° Angle Rubber Bushing

The Molex D-SUB housing 1731110061 is designed for reliable electronic connections, featuring durable construction and compatibility with standard D-sub connectors. It is commonly used in telecommunications and data networking for securing and organizing cable assemblies. The product is supplied in a 1-piece carton, offering protection and easy storage during transport.

Type	D-SUB housing
Orientation	45° Angle
Material	Zinc Die-cast
Base unit of measure	PC
Base unit of measure desc	piece
Cable Diameter	8.50-12.50mm
Cable Ø (max.)	12.5mm
Cable Ø range	8.5 - 12.5mm
Cable Ø up to	8.5mm
China ro h s status	Compliant per SJ/T 11365-2006
Connection Angle	45°
Delivery unit	100
Design registration eligibility	true
ELV status	Not Relevant
Engineering number	FMK2-K201
Engineering Part No	FMK2-K201
Engineering Series Name	FCT HOODS
Engineering Series No	173111
First published date	2019-02-27
G a d s l/ i m d s	Not Relevant
H f l h status	Not Low-Halogen per IEC 61249-2-21
Magnetic	Yes
Material (details)	Die-cast zinc; TPE; steel
Material bushing	TPE
Material screw	Steel
Material type	Finished Goods
Minimum line quantity	100
Misc Attribute	Molex MOL Power & Signal Sol.
Mounting Style	Locking Screw
Net weight	46.200/g
Packaging Type	Carton
Plating back shell	Nickel
Product name	FCT Products
Product number display	1731110061
Product number hyphen	173111-0061
Product number sap	1731110061
Reach status	Contains 1,1-(Ethane-1,2-diyl)bis[pentabromobenzene] per D(2025)7771-DC (04 Feb 2026)
Reference series	173111
Ro h s status	Compliant per EU 2015/863
Sampleable	True
Shield Type	Solid Metal
Shielded	Yes
Taxonomy	D-Sub Backshells
Temperature range operating	-35° to +100°C
Thread Size	4-40 UNC
Thread Type	Standard
Tightening test torque	40 Ncm
Upc	889056487610
Waterproof dustproof	No
