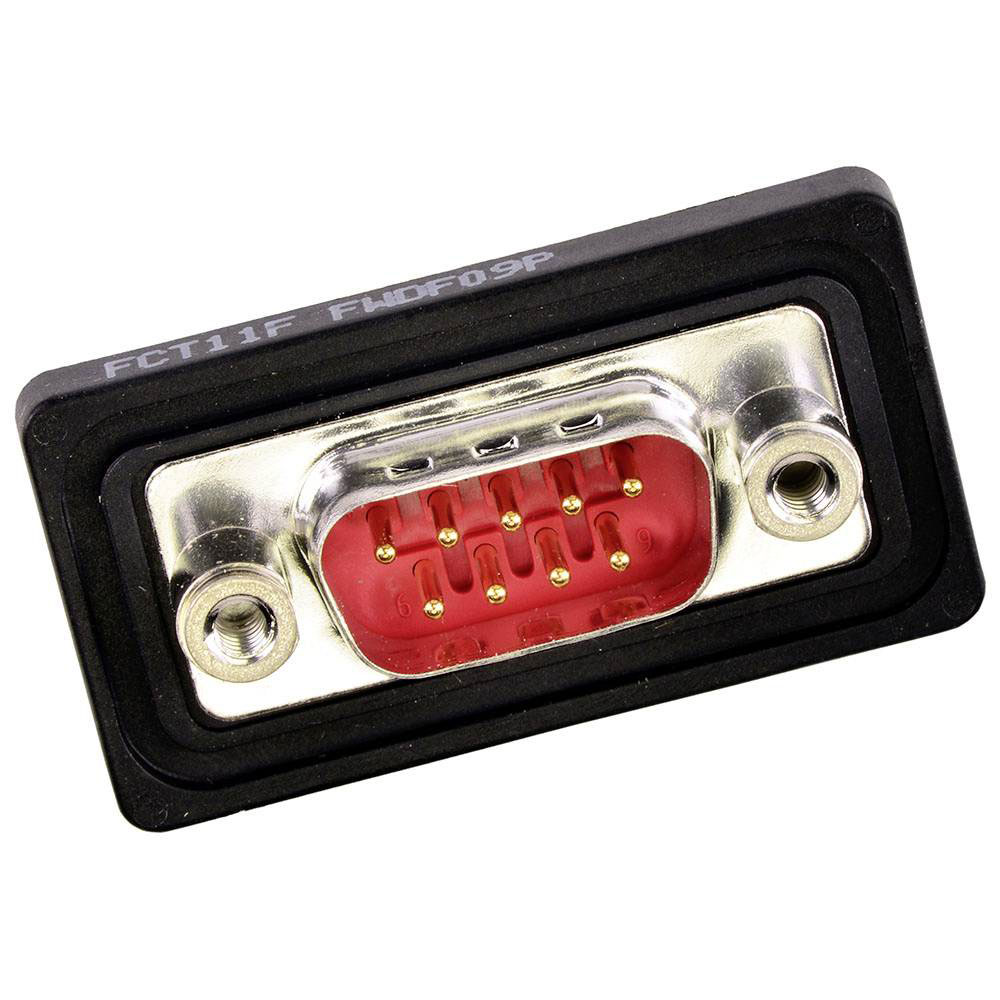

The Molex 1731100114 D-sub plug is a connector with 9 pins, designed for soldering. It is used in various electronic applications for establishing reliable data connections. This component is commonly utilised in computing and telecommunications equipment.
| Type |
D-SUB plug |
| Plug / Socket |
Plug |
| Mounting Type |
Soldering |
| No. of Ways |
9 |
| Mounting Direction |
Straight |
| Connection Angle |
180° |
| Plating Material |
Gold on nickel |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| China ro h s status |
50 Image per SJ/T 11365-2006 |
| Circuits loaded |
9 |
| Circuits maximum |
9 |
| Color resin |
Red |
| Contact Material |
Copper alloy |
| CS |
2.84mm |
| Current maximum per contact |
7.5A |
| Delivery unit |
50 |
| Design registration eligibility |
true |
| ELV status |
Not Relevant |
| Engineering number |
FWDF09P |
| Engineering Part No |
FWDF09P |
| Engineering Series Name |
FCT WATERPROOF |
| Engineering Series No |
173110 |
| Factory colour |
Red |
| First published date |
2019-06-07 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Male |
| H f l h status |
Not Reviewed per IEC 61249-2-21 |
| IP Rating |
IP67 |
| Magnetic |
Yes |
| Material contact |
Copper Alloy |
| Material resin |
PBT |
| Material shell |
Brass |
| Material type |
Finished Goods |
| Mating cycles |
500 |
| Minimum line quantity |
50 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
10.900/g |
| No. of Rows |
2 |
| Number of pins |
9 |
| Number of Rows |
2 |
| Packaging Type |
Carton |
| Panel mount |
Front |
| Panel mount method |
Thread-In |
| Pcb locator |
No |
| Pcb retention |
No |
| Pitch mating interface |
2.84mm |
| Pitch termination interface |
2.84mm |
| Plating shell |
Tin |
| Polarized to mating part |
Yes |
| Ports |
1 |
| Product name |
FCT Products |
| Product number display |
1731100114 |
| Product number hyphen |
173110-0114 |
| Product number sap |
1731100114 |
| Prop risk status |
Cancer, Developmental toxicity, Reproductive toxicity |
| Prop sub status |
Lead compounds |
| Reach status |
Contains Lead; 1,1-(Ethane-1,2-diyl)bis[pentabromobenzene] per D(2025)6375-DC (05 Nov 2025) SCIP:8d17c6d6-e5a2-4045-b79a-76a746536153 |
| Reference series |
173110 |
| Ro h s status |
Compliant with Exemption 6(c) per EU 2015/863 |
| Sampleable |
True |
| Shielded |
Yes |
| Taxonomy |
D-Sub Connectors |
| Temperature Range |
-25° - +70°C |
| Temperature range operating |
-25° to +70°C |
| Termination Style |
Solder Cup |
| Upc |
191128208765 |
| Waterproof dustproof |
Yes |
| Waterproof dustproof type |
IP67 |
| Wire size awg |
20 |
