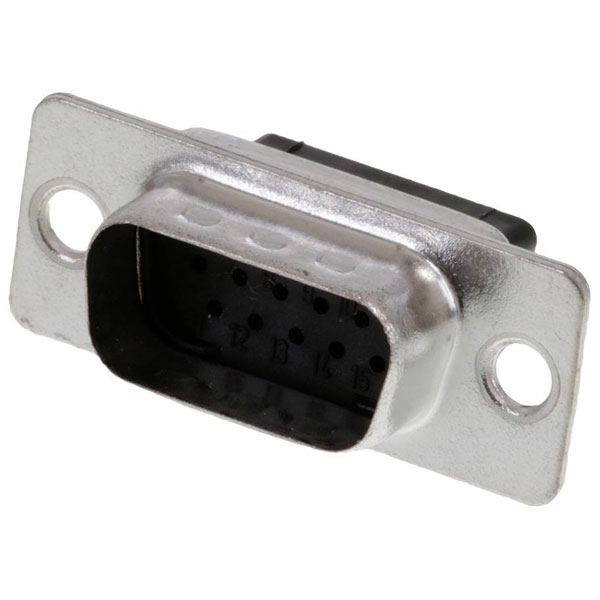

The Molex 1731090035 is a D-sub plug connector featuring 15 pins designed for crimping, suitable for reliable data and signal transmission. Manufactured by Molex, it assures high-quality electrical performance and durability. Common applications include computer interfaces, industrial equipment, and communications devices.
| Type |
D-SUB plug |
| Mounting Type |
Crimp |
| No. of Ways |
15 |
| Connection Angle |
180° |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| China ro h s status |
Not Relevant |
| Circuits loaded |
0 |
| Circuits maximum |
15 |
| Color resin |
Black |
| Connector Type |
Plug |
| CS |
1.98mm |
| Delivery unit |
100 |
| Design registration eligibility |
true |
| Elv status |
Not Relevant |
| Engineering number |
FL09-15P7 |
| Engineering Part No |
FL09-15P7 |
| Engineering Series Name |
FCT D-SUBS |
| Engineering Series No |
173109 |
| Factory colour |
Black |
| First published date |
2017-06-30 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Male |
| H f l h status |
Not Relevant |
| IP Rating |
IP20 |
| Magnetic |
Yes |
| Material resin |
PBT |
| Material shell |
Steel |
| Material type |
Finished Goods |
| Mating cycles |
500 |
| Minimum line quantity |
200 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
4.300/g |
| No. of Rows |
3 |
| Number of Rows |
3 |
| Orientation |
Straight |
| Packaging Type |
Carton |
| Panel mount |
Rear |
| Panel mount method |
Flange |
| Pcb locator |
No |
| Pcb retention |
No |
| Pitch mating interface |
1.98mm |
| Pitch termination interface |
1.98mm |
| Plating shell |
Tin |
| Polarized to mating part |
Yes |
| Ports |
1 |
| Product name |
FCT Products |
| Product number display |
1731090035 |
| Product number hyphen |
173109-0035 |
| Product number sap |
1731090035 |
| Reach status |
Not Contained per D(2025)4165-DC (25 June 2025) |
| Reference series |
173109 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Shielded |
Yes |
| Taxonomy |
D-Sub Connectors |
| Temperature Range |
-55° - +105 °C.°C |
| Temperature range operating |
-55° to +105°C |
| Termination Style |
Crimp |
| Upc |
889056291194 |
| Waterproof dustproof |
No |
| Waterproof dustproof type |
IP20 |
| Wire size awg |
22, 24, 26, 28 |
