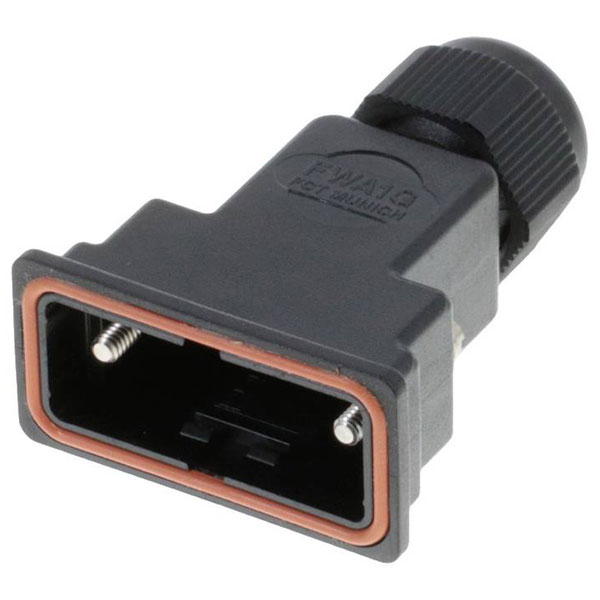

Molex 1727040105 is a black D-sub housing, sold individually, designed for securing connectors. The housing provides robust protection for electrical connections, ensuring reliability in various conditions. It is typically used in telecommunications, data processing, and test equipment applications.
| Type |
D-SUB housing |
| Connection Angle |
180° |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Cable Diameter |
6.00-8.00mm |
| Cable Ø (max.) |
8mm |
| Cable Ø range |
6 - 8 mm |
| Cable Ø up to |
6mm |
| China ro h s status |
50 Image per SJ/T 11365-2006 |
| Color resin |
Black |
| Delivery unit |
100 |
| Design registration eligibility |
true |
| Elv status |
Not Relevant |
| Engineering number |
FWA1GE |
| Engineering Part No |
FWA1GE |
| Engineering Series Name |
FCT GENERAL |
| Engineering Series No |
172704 |
| Factory colour |
Black |
| First published date |
2019-02-27 |
| G a d s l/ i m d s |
Not Relevant |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| IP Rating |
IP67 |
| Magnetic |
Yes |
| Material (details) |
PC+ABS; brass |
| Material backshell |
PC+ABS |
| Material screw |
Brass |
| Material seal |
Elastomer |
| Material type |
Finished Goods |
| Minimum line quantity |
100 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Mounting Style |
Locking Screw |
| Net weight |
17.800/g |
| Orientation |
Straight |
| Packaging Type |
Bag |
| Product name |
FCT Products |
| Product number display |
1727040105 |
| Product number hyphen |
172704-0105 |
| Product number sap |
1727040105 |
| Prop risk status |
Cancer, Developmental toxicity, Reproductive toxicity |
| Prop sub status |
Lead compounds |
| Reach status |
Contains Lead per D(2025)4165-DC (25 June 2025) SCIP:d53bdb90-7956-4942-8a7a-7bf4c345be0b |
| Reference series |
172704 |
| Ro h s status |
Compliant with Exemption 6(c) per EU 2015/863 |
| Sampleable |
True |
| Shielded |
No |
| Taxonomy |
D-Sub Backshells |
| Temperature range operating |
-35° to +120°C |
| Thread Size |
4-40 UNC |
| Thread Type |
Standard |
| Tightening test torque |
40 Ncm |
| Upc |
889056020169 |
| Waterproof dustproof |
Yes |
| Waterproof dustproof type |
IP67 |
