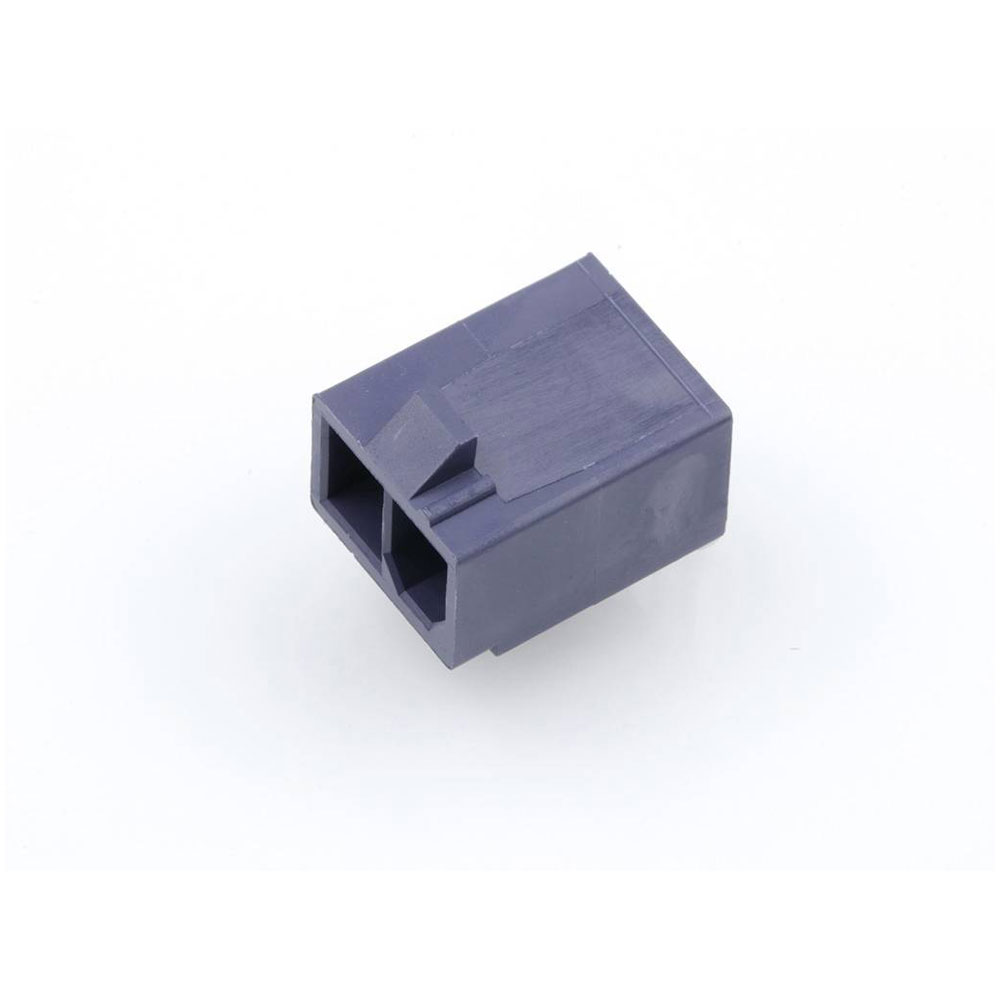

Molex 1726480102 Mini-fit Jr. Header 2 Pin 4.2mm Right-angle PCB Lock

Molex
Order Code:

05-3036

Brand: Molex MPN: 1726480102 EAN-13: 2050007095538
Qty Unit Price (Ex VAT)
10+ £0.657
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
99 in stock, despatched in 4 working days

Molex 1726480102 is a built-in pin strip featuring two pins with a contact spacing of 4.2 mm. This component is ideal for providing secure electrical connections in electronics and electrical applications. Manufactured by Molex, it is commonly used in devices requiring reliable connector systems.
Pitch 2mm
No. of Rows 1
No. of Ways 2
Application Power, Wire-to-Board
Base unit of measure PC
Base unit of measure desc piece
Board contact surface Tin
Breakaway No
Case Material Nylon (NL)
China ro h s status Compliant per SJ/T 11365-2006
Circuits loaded 2
Circuits maximum 2
Color resin Black
Component type PCB Header
Connection Soldering
Connector contact surface Tin
Connector orientation Parallel (to the PCB)
Contact Finish Brass
CS 4.2mm
Csa LR19980
Current maximum per contact 12.5A
Delivery unit 10608
Design registration eligibility true
Durability mating cycles max 30
Duration at max process temperature seconds 5
ELV status Not Relevant
Engineering number 172648-0102
Engineering Part No 172648-0102
Engineering Series Name MiniFit Jr RA Header
Engineering Series No 172648
Factory colour Black
First mate last break No
First published date 2016-11-17
G a d s l/ i m d s Compliant with Exemption 44; 33
Glow wire capable Yes
Guide to mating part No
H f l h status Not Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lead free process capability WAVE
Lock to mating part Yes
Material metal Brass
Material plating mating Matte Tin
Material plating termination Matte Tin
Material resin Nylon
Material type Finished Goods
Max cycles at max process temperature 1
Max. temperature +105°C
Min. temperature -40°C
Minimum line quantity 10608
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 1.012/g
Nominal Current 12.5A
Nominal current - rounded value 12.5A
Nominal Voltage 600V
Number of Rows 1
Orientation Right Angle
Packaging Type Tray
Pc tail length 3.50mm
Pcb locator No
Pcb retention Yes
Pcb thickness recommended 1.78mm
Pitch mating interface 4.20mm
Pitch termination interface 4.20mm
Plating min mating 2.540µm
Plating min termination 2.540µm
Polarized to mating part Yes
Polarized to pcb Yes
Primary pack qty 204
Process temperature max c 220
Product name Mini-Fit Jr.
Product number display 1726480102
Product number hyphen 172648-0102
Product number sap 1726480102
Reach status Contains 1,1-(Ethane-1,2-diyl)bis[pentabromobenzene] per D(2025)7771-DC (04 Feb 2026)
Reference series 172648
Ro h s status Compliant per EU 2015/863
Sampleable True
Shrouded Fully
Stackable No
Taxonomy PCB Headers and Receptacles
Temperature range operating -40° to +105°C
Termination interface style Through Hole
Type Built-in pin strip (standard)
Ul E29179
Upc 889056720014
Voltage maximum 600V AC (RMS)/DC
