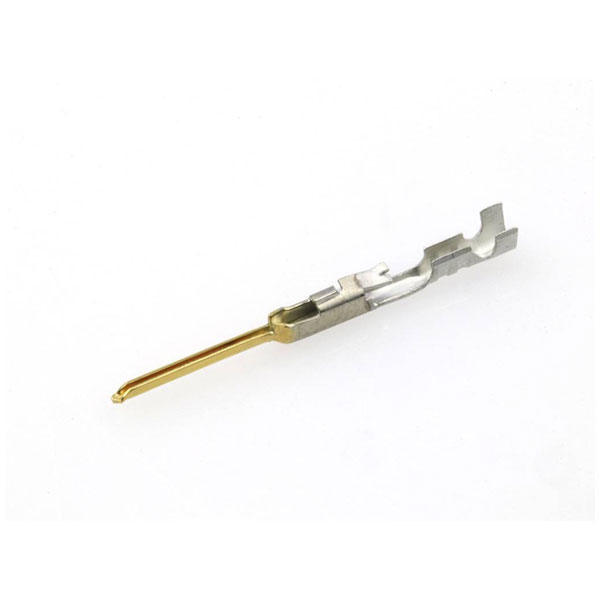

Molex 16020077 SL Crimp Terminal Male 24-30 AWG Gold Plated Reel

The Molex crimp contact, part number 16020077, features high precision and durability for reliable electrical connections. It is typically used in various electronic and automotive applications requiring secure wire-to-wire connections. This product is available in a quantity of one piece per package.

Type	Crimp contact
Pin or Socket	Male
Wire Gauge	30 - 24
Application	Signal, Wire-to-Wire
Base unit of measure	PC
Base unit of measure desc	piece
China ro h s status	Compliant per SJ/T 11365-2006
Connector Type	Plug
Contact Finish	Phosphor bronze
Delivery unit	40000
Design registration eligibility	true
ELV status	Compliant per 2000/53/EC
Engineering number	70021-0006
First published date	2007-05-16
G a d s l/ i m d s	Compliant with Exemption 44; 34; 33
Gender	Male
H f l h status	Low-Halogen per IEC 61249-2-21
Material metal	Phosphor Bronze
Material plating mating	Gold
Material plating termination	Tin
Material type	Finished Goods
Minimum line quantity	40000
Misc Attribute	MOL Power & Signal Sol.
Net weight	134.600/mg
Packaging Type	Tape on Full reel
Plating min mating	0.381µm
Plating min termination	1.905µm
Primary pack qty	20000
Product name	SL
Product number display	16020077
Product number hyphen	16-02-0077
Product number sap	0016020077
Reach status	Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series	70021
Ro h s status	Compliant per EU 2015/863
Sampleable	True
Taxonomy	Crimp Terminals
Termination interface style	Crimp or Compression
Upc	800753595965
Wire insulation diameter	1.52mm max.
Wire size awg	24, 26, 28, 30
