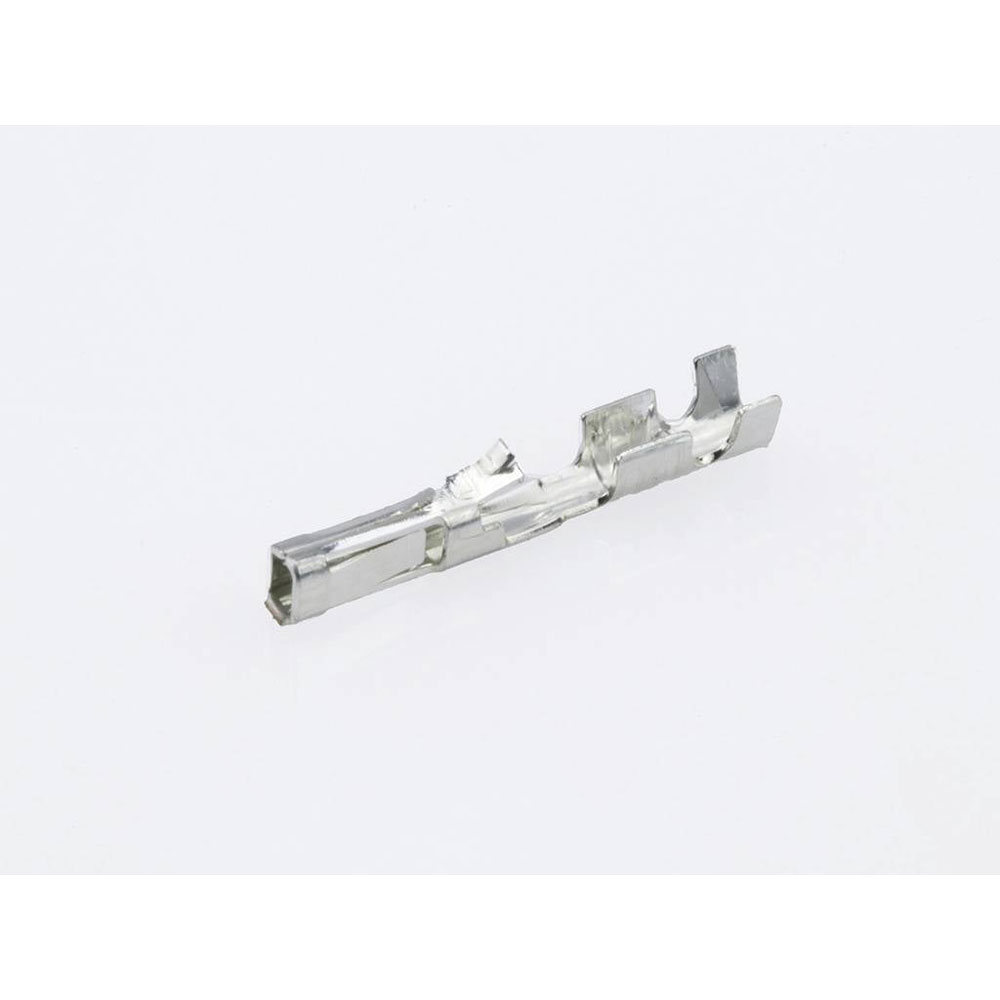

Molex 16020069 SL Crimp Terminal Female 24-30 AWG Tin Plated

Molex
Order Code:

05-3001

Brand: Molex MPN: 16020069 EAN-13: 2050009141486
Qty Unit Price (Ex VAT)
100+ £0.040
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
16,593 in stock, despatched in 4 working days

Molex's crimp contact, part number 16020069, is designed for secure electrical connections. It features high conductivity and reliability, ideal for various wiring applications. Typically used in automotive and industrial settings, this component ensures efficient signal and power transmission.
Type Crimp contact
Wire Gauge 30 - 24
Application Signal, Wire-to-Board, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
China ro h s status Compliant per SJ/T 11365-2006
Connector Type Socket
Contact Finish Phosphor bronze tin plated
Delivery unit 60000
Design registration eligibility true
ELV status Compliant per 2000/53/EC
Engineering number 70058-0004
First published date 2007-05-16
G a d s l/ i m d s Compliant with Exemption 44; 33
Gender Female
H f l h status Low-Halogen per IEC 61249-2-21
Material metal Phosphor Bronze
Material plating mating Tin
Material plating termination Tin
Material type Finished Goods
Minimum line quantity 60000
Misc Attribute MOL Power & Signal Sol.
Net weight 0.075/g
Packaging Type Tape on Full reel
Plating min mating 3.750µm
Plating min termination 3.750µm
Primary pack qty 20000
Product name CyClone,SL
Product number display 16020069
Product number hyphen 16-02-0069
Product number sap 0016020069
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 70058
Replacement part number 700581069
Ro h s status Compliant per EU 2015/863
Sampleable True
Taxonomy Crimp Terminals
Termination interface style Crimp or Compression
Upc 800753595941
Wire insulation diameter 1.52mm max.
Wire size awg 24, 26, 28, 30
