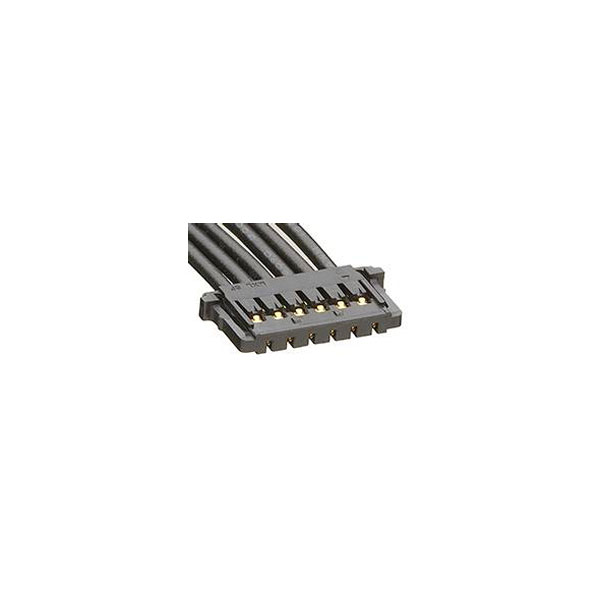

The Molex 151320601 is a socket housing cable featuring 6 pins with 1.5 mm contact spacing. Manufactured by Molex, it is suitable for secure and efficient electrical connections. Typical applications include electronic and electrical equipment where reliable connector solutions are essential.
| Connector 1 |
Socket |
| Connector 2 |
Picolock |
| Colour |
Black |
| Length |
100mm |
| Type |
Socket housing cable |
| Application |
Signal, Wire-to-Board |
| Assembly configuration |
Dual Ended Connectors |
| AWG max. |
24 |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Board contact surface |
Tin |
| Cable Length |
100.00mm |
| Case Material |
High temperature resistant thermoplastic |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
6 |
| Circuits maximum |
6 |
| Color resin |
Black |
| Connector contact surface |
Gold |
| Connector to connector |
Pico-Lock-to-Pico-Lock |
| Contact Material |
Copper alloy |
| CS |
1.5mm |
| Current maximum per contact |
3.0A |
| Delivery unit |
1500 |
| Design registration eligibility |
true |
| ELV status |
Not Relevant |
| Engineering Series Name |
PicoLock OTS Discret |
| Engineering Series No |
15132 |
| First published date |
2018-06-08 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Female-Female |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Keyword |
Pico-Lock 1.5 |
| Lock to mating part |
Yes |
| Material metal |
Copper Alloy |
| Material plating mating |
Gold |
| Material plating termination |
Tin |
| Material resin |
High Temperature Thermoplastic |
| Material type |
Finished Goods |
| Minimum line quantity |
1500 |
| Net weight |
2.412/g |
| Nominal Current |
3A |
| Nominal Voltage |
150V |
| Number of Rows |
1 |
| Over molded |
No |
| Packaging Type |
Bag |
| Pitch mating interface |
1.50mm |
| Primary pack qty |
30 |
| Product name |
Pico-Lock |
| Product number display |
151320601 |
| Product number hyphen |
15132-0601 |
| Product number sap |
0151320601 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
15132 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
False |
| Singleended |
No |
| Taxonomy |
Power and Signal Cable Assemblies |
| Termination interface style |
Crimp or Compression |
| Total number of pins |
6 |
| Upc |
191128285049 |
| Voltage maximum |
150V |
| Wire cable type |
UL 1061 |
| Wire size awg |
24 |
