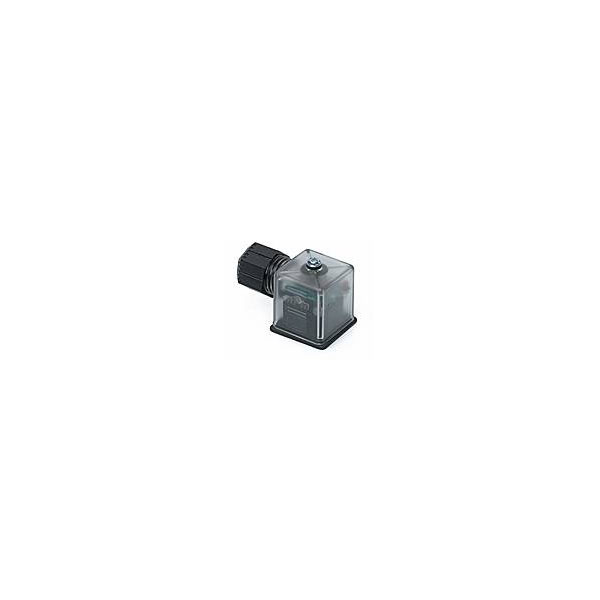

The Molex 1212070001 is a square connector with 2 pins, compliant with DIN 43650 standards. It is commonly used in applications requiring secure electrical connections such as solenoid valves and pressure sensors. Durable and reliable, this connector ensures efficient performance in industrial environments.
| Type |
Square connector |
| Conductor Material |
Brass silver plated |
| Number of Positions |
2 |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Coupling type |
External Thread |
| Current maximum per contact |
16.0A |
| Delivery unit |
50 |
| Design registration eligibility |
true |
| Diagnostics leds |
Yes |
| Diagnostics port |
No |
| Display |
LED |
| ELV status |
Not Relevant |
| Engineering number |
S28200TC320R |
| Engineering Part No |
S28200TC320R |
| First published date |
2010-03-31 |
| Form |
A - 18mm |
| G a d s l/ i m d s |
Not Relevant |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| IP Rating |
IP65, IP67 |
| Material connector body |
Polyamide |
| Material contact |
Brass |
| Material plating mating |
Silver |
| Material type |
Finished Goods |
| Max. temperature |
+90°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
100 |
| Misc Attribute 2 |
A standard |
| Net weight |
26.308/g |
| Orientation |
90° Angle |
| Pitch mating interface |
18.00mm |
| Poles |
2 |
| Primary pack qty |
50 |
| Product name |
mPm |
| Product number display |
1212070001 |
| Product number hyphen |
121207-0001 |
| Product number sap |
1212070001 |
| Reach status |
Not Contained per D(2022)9120-DC (17 Jan 2023) |
| Reference series |
121207 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
False |
| Taxonomy |
Circular Industrial Connectors |
| Temperature range operating |
-40°C to +90°C |
| Upc |
883906711580 |
| Voltage maximum |
24V |
| Voltage Rating |
24V |
| Weight |
26.308g |
