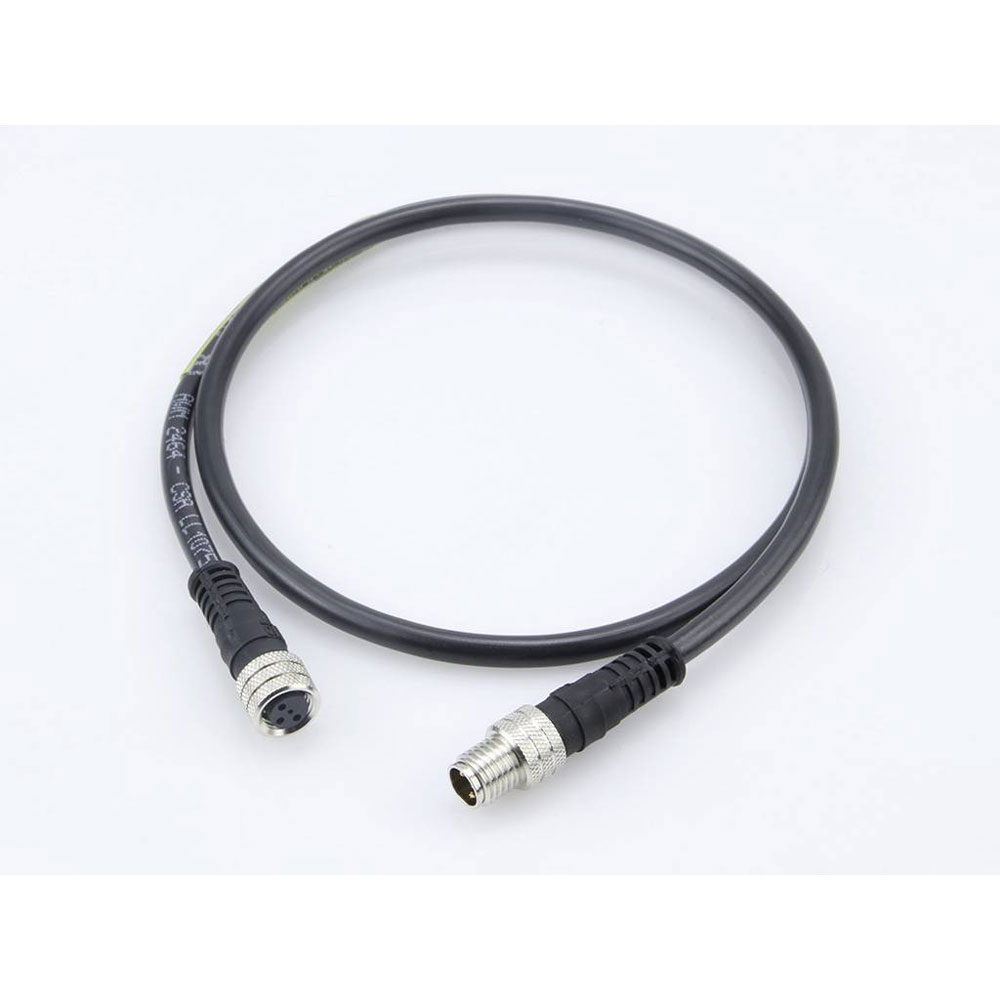

The Molex 1200878713 Sensor/actuator connector is a pre-fabricated socket/plug with a length of 5.00 metres and features 4 RJ pins. This versatile connector is ideal for connecting sensors and actuators in industrial automation systems. Typically, it is used in control panels, machinery, and automated systems to ensure reliable data transmission.
| Connector 1 |
Nano-Change (M8) |
| Connector 2 |
Nano-Change (M8) |
| Colour |
Black |
| Length |
5m |
| Type |
Sensor/actuator connector (pre-fab) |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Cable Diameter |
4.80mm (.189") |
| Cable Length |
5.0m (16.40) |
| Cable Ø |
4.8mm |
| China ro h s status |
Not Relevant |
| Color cable jacket |
Black |
| Connector end a |
Nano-Change (M8) |
| Connector end b |
Nano-Change (M8) |
| Contact Material |
Brass |
| Contact surface |
Gold |
| Coupling style |
Knurled Hexnut, Threaded |
| Current maximum per contact |
3.0A |
| Delivery unit |
24 |
| Design registration eligibility |
true |
| ELV status |
Compliant with Exemption 3 per 2000/53/EC |
| Engineering number |
444030B41M050 |
| Engineering Part No |
444030B41M050 |
| Engineering Series Name |
NC DC D/E Cordsets |
| Engineering Series No |
120087 |
| First published date |
2015-11-21 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Female-Male |
| H f l h status |
Not Relevant |
| Industrial packaging |
Yes |
| IP Rating |
IP67 |
| Jacket material |
TPU |
| Key way |
A-Coded |
| Material cable jacket |
TPU |
| Material connector body |
TPU |
| Material contact |
Brass |
| Material coupling nut |
Nickel-plated Brass |
| Material oring |
Fluoro-elastomer |
| Material plating mating |
Gold |
| Material type |
Finished Goods |
| Max. temperature |
+85°C |
| Min. temperature |
-25°C |
| Minimum line quantity |
24 |
| Misc Attribute |
Molex WOD Industrial Solution |
| Net weight |
171.500/g |
| Nominal Current |
3A |
| Nominal current - rounded value |
3A |
| Nominal Voltage |
30V |
| Number of Cores |
4 |
| Orientation |
Straight to Straight |
| Poles |
4 |
| Primary pack qty |
1 |
| Product name |
Nano-Change (M8) |
| Product number display |
1200878713 |
| Product number hyphen |
120087-8713 |
| Product number sap |
1200878713 |
| Prop risk status |
Cancer, Developmental toxicity, Reproductive toxicity |
| Prop sub status |
Lead compounds |
| Reach status |
Contains Lead per D(2025)4165-DC (25 June 2025) |
| Reference series |
120087 |
| Ro h s status |
Compliant with Exemption 6(c) per EU 2015/863 |
| Sampleable |
False |
| Taxonomy |
Circular Industrial Cordsets |
| Temperature range operating |
-25° to +85°C |
| Upc |
889056073998 |
| Voltage maximum |
60V AC / 75V DC |
| Wire cable type |
UL 21215 |
| Wire size awg |
24 |
