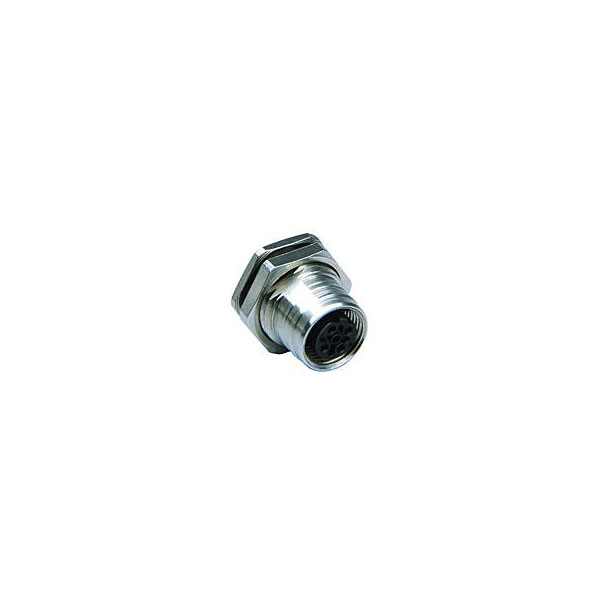

Molex 1200845159 Ultra-lock M12 5-pin Pg9 Socket With Pvc Leads 0.30m

The Molex 1200845159 is a sensor/actuator connector designed with five RJ pins, offering a secure socket connection. Manufactured by Molex, this connector is typically used in industrial automation and sensor applications. Its reliable design ensures efficient signal transmission in critical environments.

Type	Socket
Number of Contacts	5
Connector Size	M12
Gender	Female
Base unit of measure	PC
Base unit of measure desc	piece
China ro h s status	Not Relevant
Coupling type	Internal Thread
Csa	LR6837
Current maximum per contact	4.0A
Current Rating	4A
Design registration eligibility	true
ELV status	Not Reviewed per 2000/53/EC
Engineering number	WR5J20E03C3003
First published date	2010-03-11
G a d s l/ i m d s	Not Relevant
H f l h status	Not Relevant
IP Rating	IP69K
Key way	Single
Length	0.30m
Material component	Nickel-plated Brass
Material type	Finished Goods
Max. temperature	+90°C
Min. temperature	-25°C
Mounting thread size	PG9
Nema rating	NEMA 6
Net weight	3.000/g
Nominal Voltage	250V DC/AC
Orientation	Straight
Panel mount	Front
Poles	5
Primary pack qty	10
Product name	Ultra-Lock (M12)
Product number display	1200845159
Product number hyphen	120084-5159
Product number sap	1200845159
Prop risk status	Cancer, Developmental toxicity, Reproductive toxicity
Prop sub status	Lead compounds
Reach status	Contains Lead; Triphenyl-phosphate; Lead monoxide per D(2025)4165-DC (25 June 2025)
Reference series	120084
Ro h s status	Compliant with Exemption 6(c) per EU 2015/863
Sampleable	False
Sensor/actuator connectivity fittings	Front panel fitting
Taxonomy	Circular Industrial Connectors
Temperature range operating	-25° to +90°C
Thread type (wiring and installation)	PG9
Upc	884982225268
Voltage maximum	60V
Wire cable type	UL 1569
Wire size awg	22
