Molex 1200710034 Micro-change M12 Field Attachable Connector 5-pin

Molex
Order Code:

05-2868

Brand: Molex MPN: 1200710034 EAN-13: 2050007096542
Qty Unit Price (Ex VAT)
1+ £49.01
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
7 in stock, despatched in 4 working days

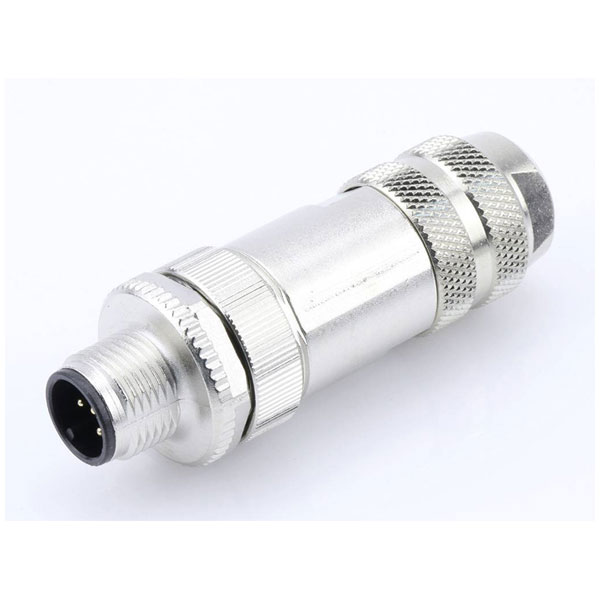

The Molex 1200710034 is a pre-fabricated sensor/actuator connector plug with five RJ pins, designed for reliable connectivity. It is ideally used in automation or industrial applications where robust and efficient signal transmission is necessary. Manufactured by Molex, this connector is noted for its durable build and ease of integration.
Type Plug
Number of Contacts 5
Gender Male
Approvals cRUus - UL Recognized
Base unit of measure PC
Base unit of measure desc piece
Cable Diameter 6.00-8.00mm (.236-.315")
Cable Ø (max.) 8mm
Cable Ø range 6 - 8 mm
Cable Ø up to 6mm
China ro h s status 50 Image per SJ/T 11365-2006
Contact Material Gold
Coupling type External Thread
Current maximum per contact 4.0A
Current Rating 4A
Design registration eligibility true
Diagnostics leds No
Diagnostics port No
Elv status Not Relevant
Engineering number 8A5S06-32
First published date 2016-09-26
G a d s l/ i m d s Duty-To-Declare
H f l h status Not Reviewed per IEC 61249-2-21
IP Rating IP67
Key way Single
Material connector body Zinc Die-Cast
Material contact Brass
Material coupling nut Brass
Material plating mating Gold
Material type Finished Goods
Max. temperature +85°C
Min. temperature -40°C
Net weight 43.000/g
Nominal Voltage 60V
Orientation Straight
Poles 5
Product name Micro-Change (M12)
Product number display 1200710034
Product number hyphen 120071-0034
Product number sap 1200710034
Prop risk status Cancer, Developmental toxicity, Reproductive toxicity
Prop sub status Lead compounds
Reach status Contains Tinuvin 327 per ED/01/2018 (15 January 2018)
Reference series 120071
Ro h s status Compliant with Exemption 6(c) per EU 2015/863
Sampleable True
Taxonomy Circular Industrial Connectors
Temperature range operating -40° to +85°C
Upc 889056413183
Voltage maximum 60V
Wire size awg 18
