Molex 09481064 KK 396 Pc Board Connector 6 Pins 3.96mm Spacing

Molex
Standard range
Order Code:

05-2759

Brand: Molex MPN: 09481064
Qty Unit Price (Ex VAT)
1+ £1.50
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
49 in stock, despatched in 4 working days

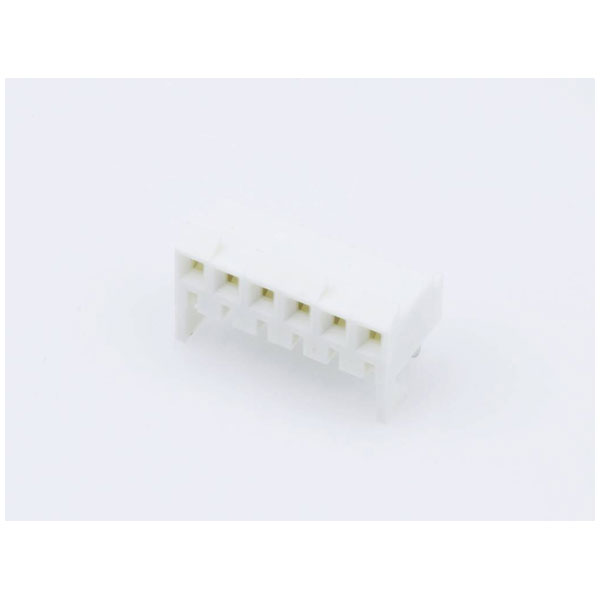

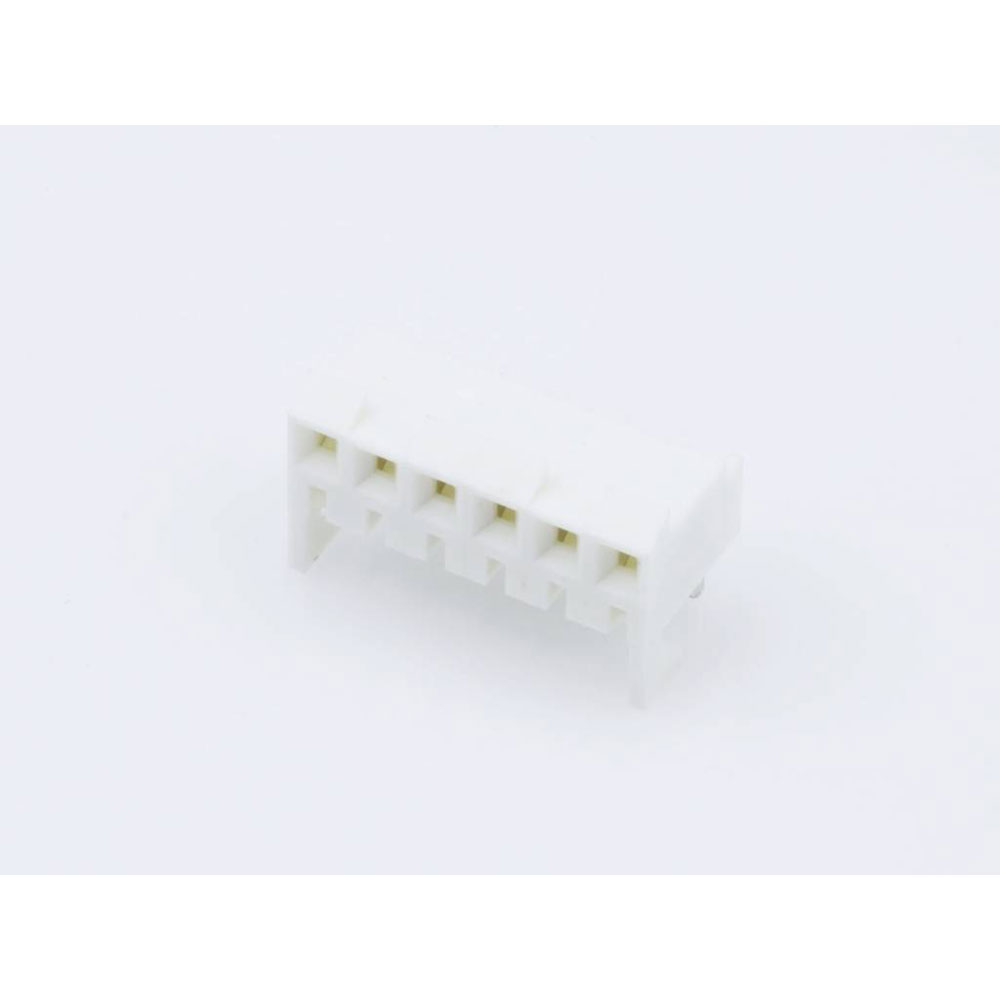

The Molex built-in SIL socket is a six-pin connector with a contact spacing of 3.96 mm, suitable for a variety of electronic applications. Manufactured by Molex, this standard socket is designed for easy integration into electronic circuits. It is typically used in consumer electronics and other devices where reliable connections are required.
Type Built-in SIL socket (standard)
Board contact surface Tin
Case material Polyester
Coating thickness (PCB side) 5.08µm
Connection Soldering
Connector coating thickness 5.08µm
Connector contact surface Tin
Connector orientation Parallel (to the PCB)
Contact material Phosphor bronze
CS 3.96mm
Engineering Part No A-41815-0006
Engineering Series Name .156 POLYESTER P.C.
Engineering Series No 41815
Factory colour Ecru
Manufacturer part # 09481064
Misc Attribute Molex MOL Power & Signal Sol.
No. of rows 1
Nominal current 5A
Nominal current - rounded value 5A
Nominal voltage 250V
Packaging type Tray
RoHS-compliant Yes
Total number of pins 6
