Midas MCIB-16 LVDS to 40 Way LVDS TFT Displays

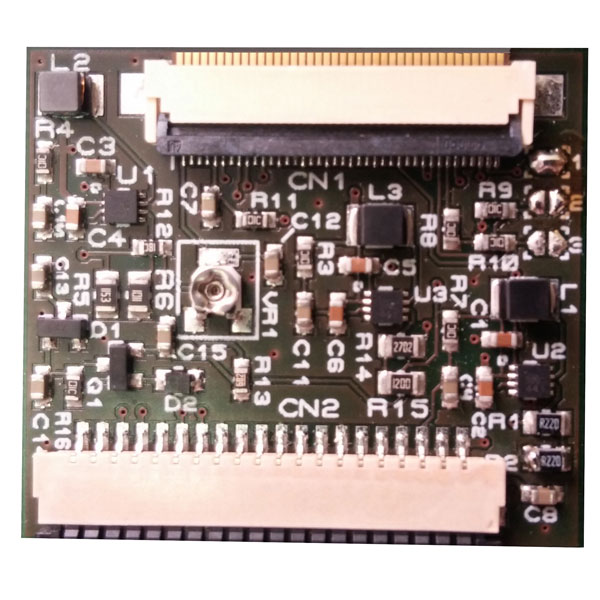

The Midas Displays MCIB-16 is an LVDS interface board designed to provide the different voltage requirements for a range of LVDS displays. The board has an LVDS interface input and a 40-way 0.5mm pitch FFC TFT display connector, and generates voltages from -7.5 to +21V (digital/analog/VCOM/VGL/VGH).

• LVDS Interface input
• 40-Way 0.5mm pitch FFC TFT display connector
• Display supply voltage input 3.3V
• DC-DC Circuit supply voltage input 5V
• Dimensions 31 x 35 x 11mm

Dimension	31 x 35 x 11mm
Dimensions	31 x 35 x 11mm
