Metz Connect 11050270 Signal Converter Isolated 0-10 V or 0-20 mA

Metz Connect
Order Code:

09-9566

Brand: Metz Connect MPN: 11050270 EAN-13: 4251394629254
Qty Unit Price (Ex VAT)
1+ £76.19
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched in 4 working days

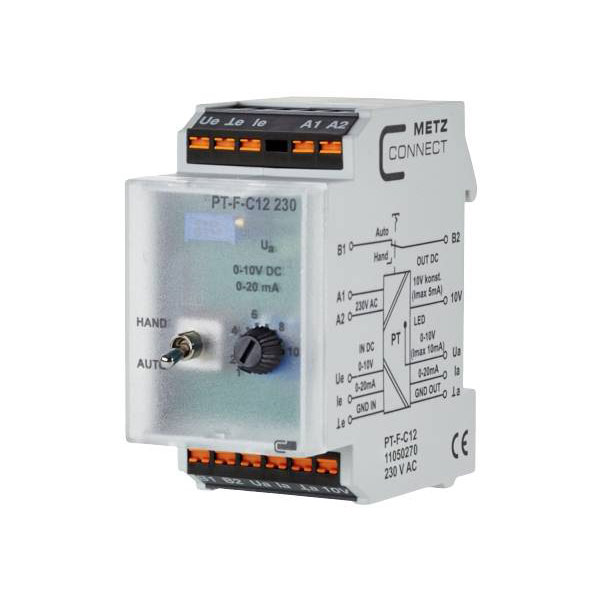

The Metz Connect PT-F-C12 230 V AC is a signal converter designed for control systems and automation applications. This product functions as a temperature transducer, digital converter, and passive isolator, ensuring efficient signal processing. Commonly used in industrial settings, it provides reliable interface conversion and isolation.
Type Signal converter
Cross section (inflexible) (max.) 2.5mm²
Cross section (inflexible) (min.) 0.2mm²
Current Consumption AC: 200 mA; DC: 110mA
Dim (L x W x H) 60 x 35 x 69.30 mm
Height 69.30mm
Input signal (current) 0 - 20 mA
Input signal (current) (max.) 20mA
Input signal (voltage) 0 - 10 V/DC
Input signal (voltage) (max.) 10V
Length 60mm
Load 500 Ω
Max. ambient temperature +70°C
Min. ambient temperature -20°C
Misc Attribute PT-F-C12 230 V AC
Operating Voltage 230, 230 V AC, V DC (max)
Output (voltage) 0 - 10 V/DC
Output (current) 0 - 20 mA
Width 35mm
