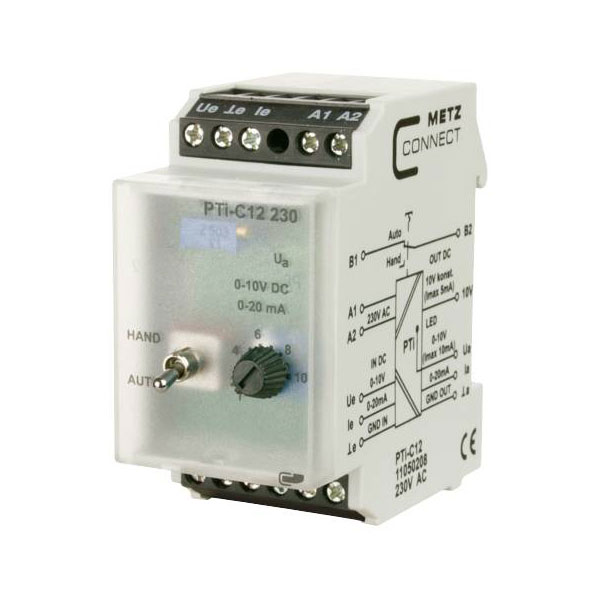

Metz Connect 11050208 PTi-C12 Signal Converter 230V AC Potential Isolated

Metz Connect manufactures the PTi-C12 230 V AC, a signal converter that provides reliable interface solutions in control systems and automation. This versatile device functions as a temperature transducer, frequency converter, and passive isolator. Typically used in industrial settings, it enables accurate signal conversion and isolation for efficient system operations.

Type	Signal converter
Cross section (inflexible) (max.)	2.5mm²
Cross section (inflexible) (min.)	0.34mm²
Current Consumption	AC: 200 mA; DC: 110mA
Dim	(L x W x H) 60 x 35 x 69.30 mm
Height	69.30mm
Input signal (current)	0 - 20mA
Input signal (current) (max.)	20mA
Input signal (voltage)	0 - 10 V/DC
Input signal (voltage) (max.)	10V
Length	60mm
Load	500 Ω
Max. ambient temperature	+70°C
Min. ambient temperature	-20°C
Misc Attribute	PTi-C12 230 V AC
Output (current)	0 - 20mA
Supply Voltage	0 - 10V
Width	35mm
