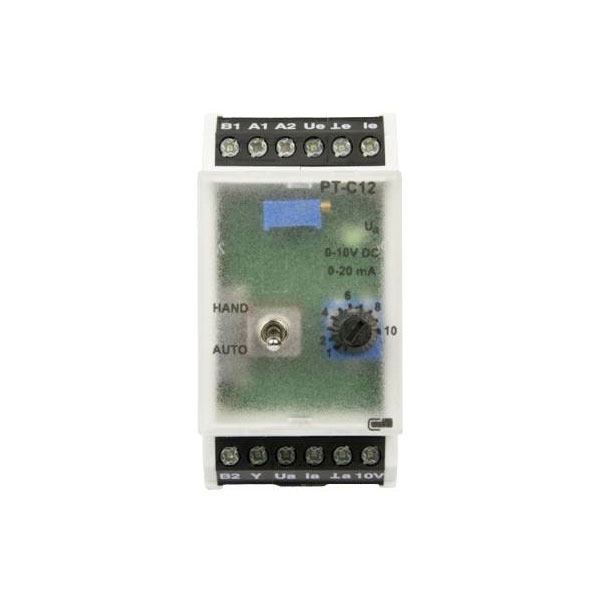

Metz Connect 110501 PT-C12 Signal Converter 24V AC/DC Potential Isolation

Metz Connect
Order Code:

09-9559

Brand: Metz Connect MPN: 110501 EAN-13: 4250184122173
Qty Unit Price (Ex VAT)
1+ £74.13
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

Metz Connect manufactures the PT-C12 24 V AC/DC 110501 Signal Converter, a versatile device ideal for use in automation and control systems. This analogue converter functions effectively as a temperature transducer and signal transducer. It is commonly applied in environments requiring precise signal interfacing and isolation for efficient system integration.
Type Signal converter
Cross section (inflexible) (max.) 2.5mm²
Cross section (inflexible) (min.) 0.34mm²
Current Consumption AC: 200 mA; DC: 110mA
Dim (L x W x H) 60 x 35 x 69.30 mm
Height 69.30mm
Input signal (current) 0 - 20 mA
Input signal (current) (max.) 20mA
Input signal (voltage) 0 - 10 V/DC
Input signal (voltage) (max.) 10V
Length 60mm
Load 500 Ω
Max. ambient temperature +70°C
Min. ambient temperature -20°C
Misc Attribute PT-C12 24 V AC/DC
Operating Voltage 24, 24 V AC, V DC (max)
Output (voltage) 0 - 10 V/DC
Output (current) 0 - 20 mA
Width 35mm
