Metz Connect 110304412004 RKAk-E10 Timer Relay 230V AC 1 CO Potentiometer

Metz Connect
Order Code:

09-9541

Brand: Metz Connect MPN: 110304412004 EAN-13: 4250184121206

Discontinued

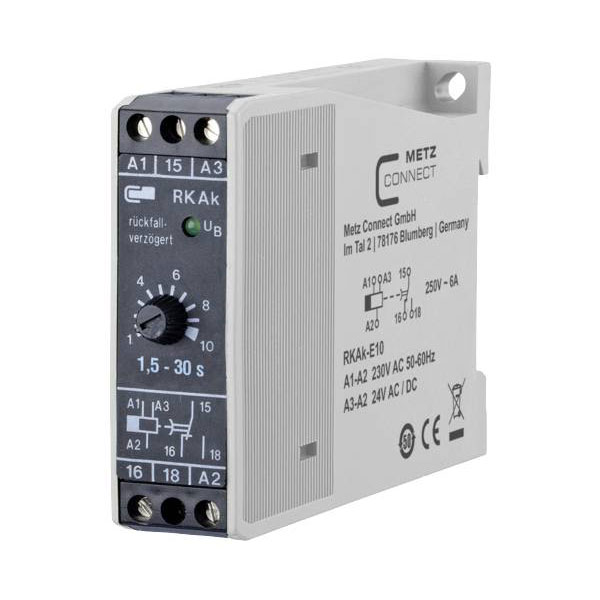

The Metz Connect 110304412004 RKAk-E10 TDR is a multifunction time-delay relay designed for off-delay operations with a 230 V AC input. It features a change-over contact and is DIN rail mountable, providing surge protection and reliable timing functions. Typically used in staircase lighting control, it efficiently regulates the operation time after activation.
Type TDR
Connection Screw terminal
Contact Configuration 1 change-over
Depth 90mm
Dim (W x H x D) 22.50 x 70 x 90 mm
Height 70mm
IP Rating IP40
Max. operating voltage 230V AC
Max. temperature +55°C
Min. temperature -10°C
Misc Attribute 1 Off-delay
Misc Attribute 2 RKAk-E10
Switching current (max.) 6A
Switching voltage (max.) 250V AC
Width 22.50mm
