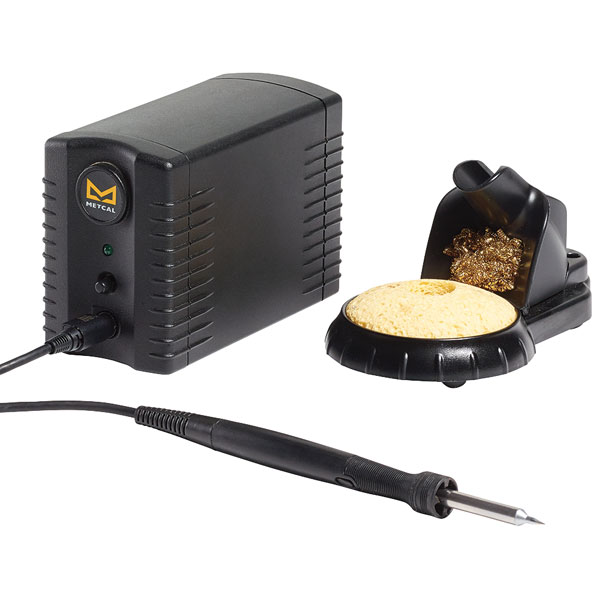

Metcal PS-900 Production Soldering System

Metcal PS-900 Production Soldering System

The PS-900 Production Soldering System is powered by SmartHeat® Technology and is part of a new generation of cost-effective soldering systems from Metcal. It packs plenty of power and provides exceptional thermal control in a small bench-top footprint.The Metcal PS-900 helps to increase productivity by performing a wide range of applications - it is designed for lead-free soldering processes, multi-layer boards and thermally demanding components.

SmartHeat^® temperature control
Ergonomic, lightweight handle
Rugged cast-aluminium housing
Extra thick tip plating
Low cost, quick-change heating coil
System includes:
PS-PW900 : Power Supply
PS-HC3 : Hand-piece with long cord and coil assembly
SFV-CH15A : 1.5mm chisel soldering tip
WS2-NS : Work-stand
AC-CP2 : Tip removal pad

Click here for a range of suitable soldering tips.

Products
Technical Details
Questions (0)

Power Supply:
Output Frequency:	450kHz
Output Power:	60 Watts max. at 22°C ambient temperature
Power Consumption:	90 Watts max.
Input Line Frequency:	50/60 Hz
Input Line Voltage:	100 to 240V AC
Maximum Enclosure Temperature:	65°C
Ambient Operating Temperature:	10 to 40°C
Power Cord (3-wire):	274cm 18/3 SJT
Dimensions W x D x H:	80 x 160 x 115mm (3.1 x 6.3 x 4.5in.)
Soldering Handle and Coil Assembly:
Tip to grip:	58mm (2.28in.)
Grip diameter:	13mm (0.51in.)
Overall length (with tip):	230mm (9.06in.) with standard tips Connector 3-pin power connector
Handle Cord Assembly Length:	122cm - burn proof, ESD safe
Idle Temperature Repeatability:	±1.1°C in still air
Tip-to-Ground Resistance:	<2Ω
Tip-to-Ground Potential:	<2 mV
Tip shaft diameter:	8.0mm (0.31in.)
Tip length:	82mm (3.23in.) to 93mm (3.66in.) (typical)
Workstand W x D x H:	105 x 175 x 90mm (4.1 x 6.9 x 3.5in.)
