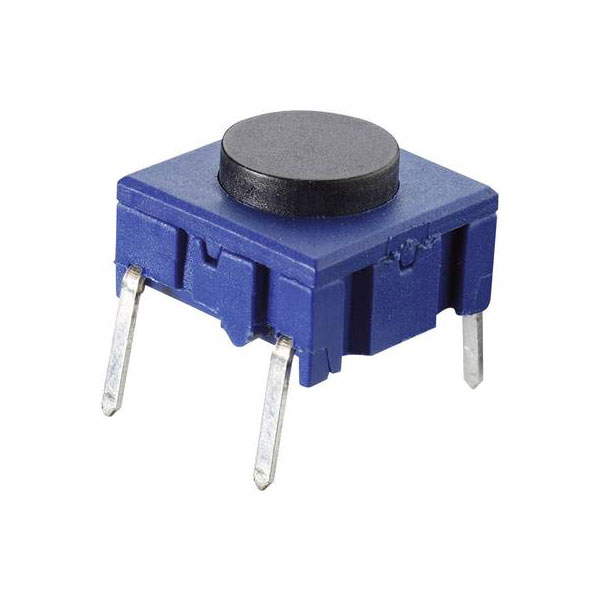

MEC 3ETH9-10.4 Pushbutton 24V DC IP67 Momentary Off/(On) 0.05A

MEC
Standard range
Order Code:

12-4610

Brand: MEC MPN: 3ETH9-10.4 EAN-13: 2050000224881
Qty Unit Price (Ex VAT)
1+ £1.09
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
163 in stock, despatched in 4 working days

The MEC 3ETH9-10.4 pushbutton operates on 24 V DC and can handle a current of 0.05 A. It features an IP67 rating, ensuring high resistance to dust and water, and functions as a momentary switch with an off/(on) configuration. Typically used in industrial control panels or equipment requiring reliable momentary switching.
Type Pushbutton
Board thickness (max.) 5.1mm
Casing/button colour Black
Connection Print
Contact resistance 10 mΩ
Contact type 1 maker
Durability
>10 x 106 cycles
Electrical lifespan
>10 x 106 cycles
Front panel cut-out 10.1 x 10.1 mm
Functions momentary
Height 10.4mm
Insulation resistance >10MΩ
IP rating IP67
Lighting type None
Max. temperature +115°C
Min. temperature -40°C
Misc Attribute 1 1 x off/(on)
Misc Attribute 2 3ETH9-10.4
Switch position 1 x Off/(On)
Switch/button features Protruding
Switching capacity max. 50 mA/24V DC
Switching Current 50mA
Switching current (max.) 0.05A
Switching voltage 24V DC
Temperature range -40 - +115°C
