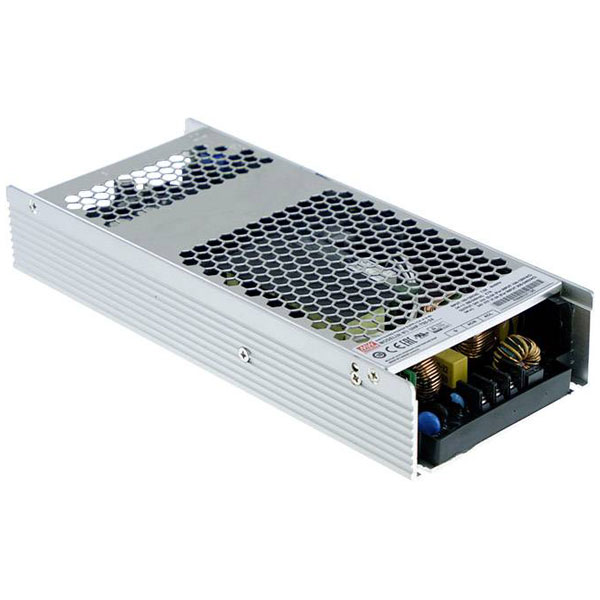

Mean Well UHP-750-36 SMPSU 36V 20.9A 96% efficiency wide temp range

Mean Well
Order Code:

05-1903

Brand: Mean Well MPN: UHP-750-36 EAN-13: 4021087051774
Qty Unit Price (Ex VAT)
1+ £208.34
5+ £196.87
10+ £187.50
25+ £177.08
50+ £171.25
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 26/12/2025

The Mean Well UHP-750-36 is a switch mode power supply unit (SMPSU) that provides a reliable output of 36 V DC at 20.9 A, delivering a total power of 752.4 W. It is designed for PCB mounting and features screw terminals for easy installation. This power supply is commonly used in industrial and automation applications where robust and efficient power delivery is required.
Output Voltage 36V DC
Output Current 20.9A
Power Rating 752.4W
Number of Outputs 1
Connection Screw terminal
Dimensions (L x W x H) 237 x 100 x 41 mm
Height 41mm
Length 237mm
Misc Attribute 2 closed
Misc Attribute 3 Pulsed
MTBF 2799700h
Operating temperature (max.) +70°C
Operating temperature (min.) -30°C
PFC Yes
PSU features Adjustable voltage output
Type SMPSU
Width 100mm
