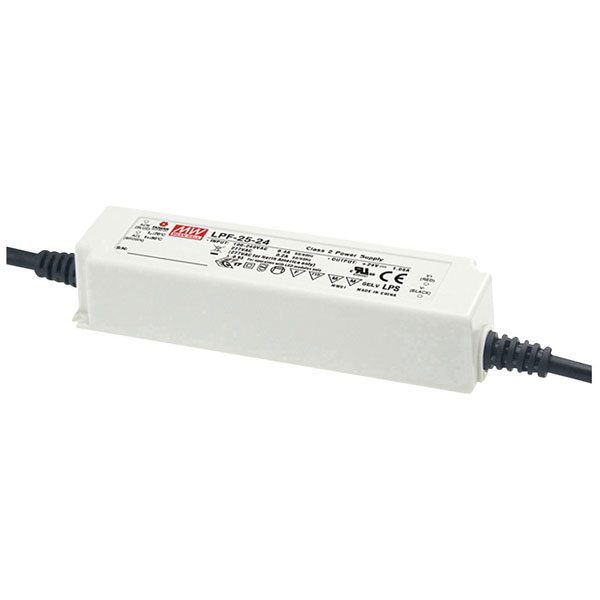

Mean Well LPF-25D-24 LED driver 25.2W 1.05A dimmable IP67 PFC

Mean Well
Order Code:

05-1027

Brand: Mean Well MPN: LPF-25D-24 EAN-13: 4021087007696
Qty Unit Price (Ex VAT)
1+ £29.76
5+ £28.28
10+ £27.27
25+ £26.52
50+ £25.16
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
11 in stock, despatched in 4 working days

The Mean Well LPF-25D-24 LED driver is a constant voltage and constant current transformer with a power rating of 25.2 watts and a current of 1.05 amps, operating in a range from 13.2 to 24 volts DC. Notable features include its dimmable capability, power factor correction (PFC) circuit, and surge protection. It is typically used in LED strip lighting applications where stable and efficient power delivery is essential.
Type LED driver
Connection Open end cable
Dim (L x W x H) 148.00 x 40.00 x 32.00 mm
Height 32.00mm
Input voltage (max.) 305V AC
IP Rating IP67
Length 148.00mm
Max. output current 1.05A
Max. power 25.2W
Min. input voltage 90V AC
Misc Attribute Synchronised
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 1.05A
Output voltage (max.) 24V DC
Output voltage (min.) 13.2V DC
Power range 25.2 W (max)
Protection Class II
Width 40.00mm
