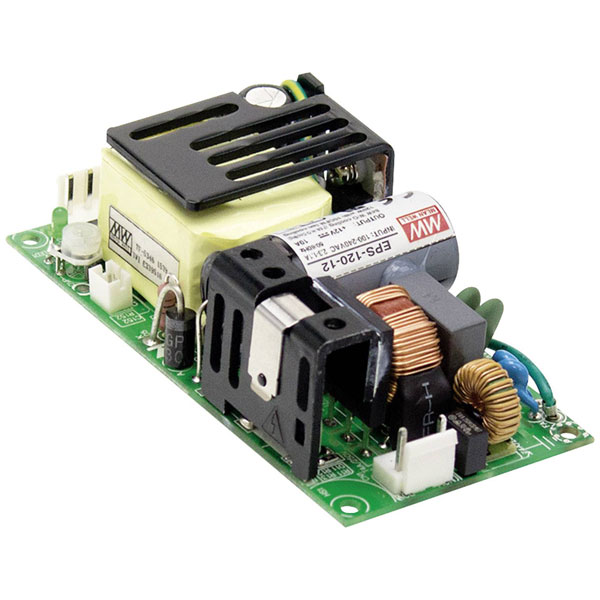

Mean Well EPS-120-12 SMPS 12.6V 10A 120W compact efficient robust

The Mean Well EPS-120-12 SMPSU is a printed circuit board power supply unit with a voltage output of 12.6 V DC and a current rating of 10 A, delivering 120 W of power. Designed for PCB mount applications, it features solder lugs for easy installation and connectivity. Typically used in electronic assemblies and equipment, it offers reliable and efficient power conversion for various industrial or consumer devices.

Type	SMPSU
Nominal value output current 1	0A
Number of Outputs	1
Power Rating	120W
1st secondary output voltage	12.6V
2nd secondary output voltage	12.6V
3rd secondary output voltage	12.6V
Depth	101.6mm
Dimensions (L x W x H)	101.6 x 50.8 x 29mm
Height	29mm
Max. output current 1	10A
Maximum Temperature	+70°C
Min. temperature	-30°C
Misc Attribute 2	Pulsed
Misc Attribute 3	open
MTBF	653500h
Nominal value output voltage 1 [DC]	11.4V
Nominal value output voltage 2	12.6V
Nominal value output voltage 3	12.6V
Number of Inputs	1
Output voltage stabilized	12.6V
PFC	No
PSU features	Adjustable voltage output
Rated supply voltage AC 50 Hz	12.6V
Rated supply voltage AC 60 Hz	12.6V
Rated supply voltage DC	12.6V
Type of electric connection	Pin strip for nylon crimp connectors
Voltage type (supply voltage)	12.6V
Weight	150g
Width	50.8mm
