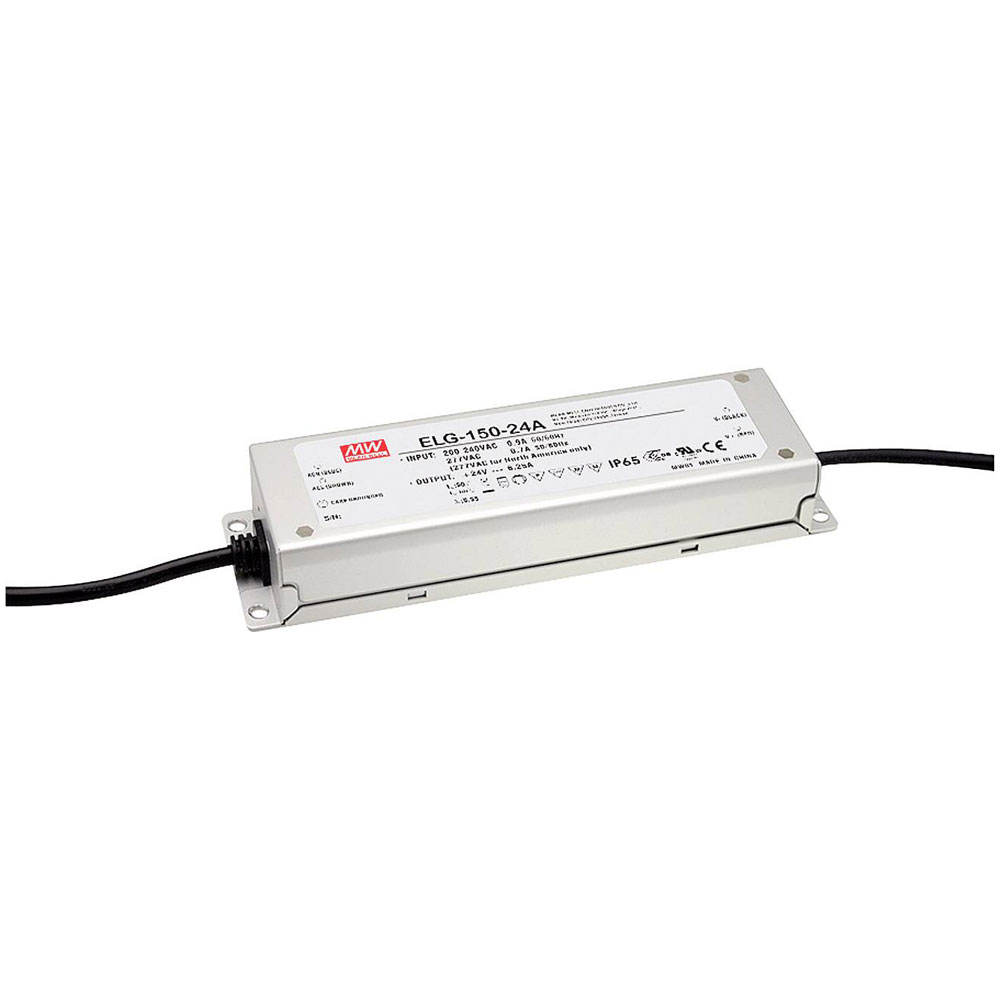

Mean Well ELG-150-48A-3Y LED driver 150.2 W surge protection IP65.

Mean Well
Standard range
Order Code:

05-0462

Brand: Mean Well MPN: ELG-150-48A-3Y
Qty Unit Price (Ex VAT)
1+ £31.71
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
43 in stock, despatched in 4 working days

The Mean Well ELG-150-48A-3Y LED transformer is a constant voltage and constant current LED driver with a power rating of 150.2 W and an adjustable output of 43.2 - 52.8 V DC. It features surge protection, overvoltage protection, and a power factor correction circuit, making it suitable for use on flammable surfaces. Typical applications include LED power supply for LED strips and other LED lighting systems.
Type LED transformer
Connection Open end cable
Dim (L x W x H) 219 x 63 x 35.5 mm
Factory colour Metal
Height 35.5mm
Input voltage (max.) 305V AC
IP rating IP65
Length 219mm
Max. output current 3.13A
Max. power 150.2W
Max. temperature 90°C
Min. input voltage 100V AC
Min. temperature -40°C
Misc Attribute Synchronised
No. of inputs 1
No. of outputs 1
Output current (max.) - rounded 3.13A
Output current (min.) 1.56A
Output voltage (max.) 52.8V DC
Output voltage (min.) 43.2V DC
Power (min.) 105W
Power range 105 up to 150.2 W
Protection class I
Weight 950g
Width 63mm
