Mean Well DRA-40-24 DRA series DIN rail PSU 24V 1.7A 40.8W 1 output

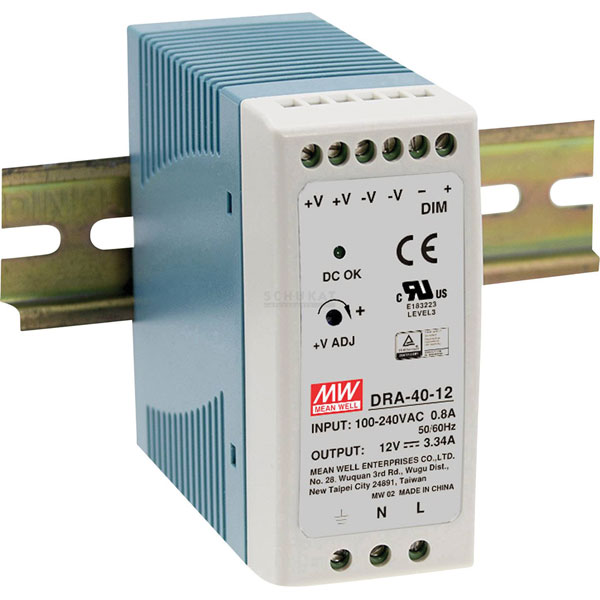

Image Representative of Range

Mean Well DRA-40-24 DRA series DIN rail PSU 24V 1.7A 40.8W 1 output

Mean Well
Order Code:

05-0418

Brand: Mean Well MPN: DRA-40-24 EAN-13: 4021087038683
Qty Was Unit Price (Ex VAT)
1+ £48.55 £19.78
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 14 days

The Mean Well DRA-40-24 is a DIN rail-mounted power supply unit providing a 24 V DC output at 1.7 A and 40.8 W, suitable for industrial applications. This power supply features screw terminals for secure connections and is designed for single output use. It is commonly used in industrial automation, control panels, and machinery systems.
Type Rail mounted PSU (DIN)
Output Voltage 24V DC
Output Current 1.7A
Number of Outputs 1
Power Rating 40.8W
Connection Screw terminal
Dim (L x W x H) 40 x 100 x 90 mm
Height 90mm
Input Voltage 90-264 V/AC 47-63Hz
Inputs 90-264 V/AC 127-370 V/DC
Length 40mm
Max. output current 1.7A
Max. temperature +70°C
Min. temperature -30°C
Misc Attribute 2 Pulsed
MTBF 439300h
Output type (power supply units) Adjustable
Phases 1
PSU features Adjustable voltage output
Width 100mm
