Mean Well DRA-40-12 psu 12V 3.34A 40.08W adjustable DIN rail mount

Mean Well
Order Code:

05-0417

Brand: Mean Well MPN: DRA-40-12 EAN-13: 4021087038690
Qty Unit Price (Ex VAT)
1+ £37.54
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 26/12/2025

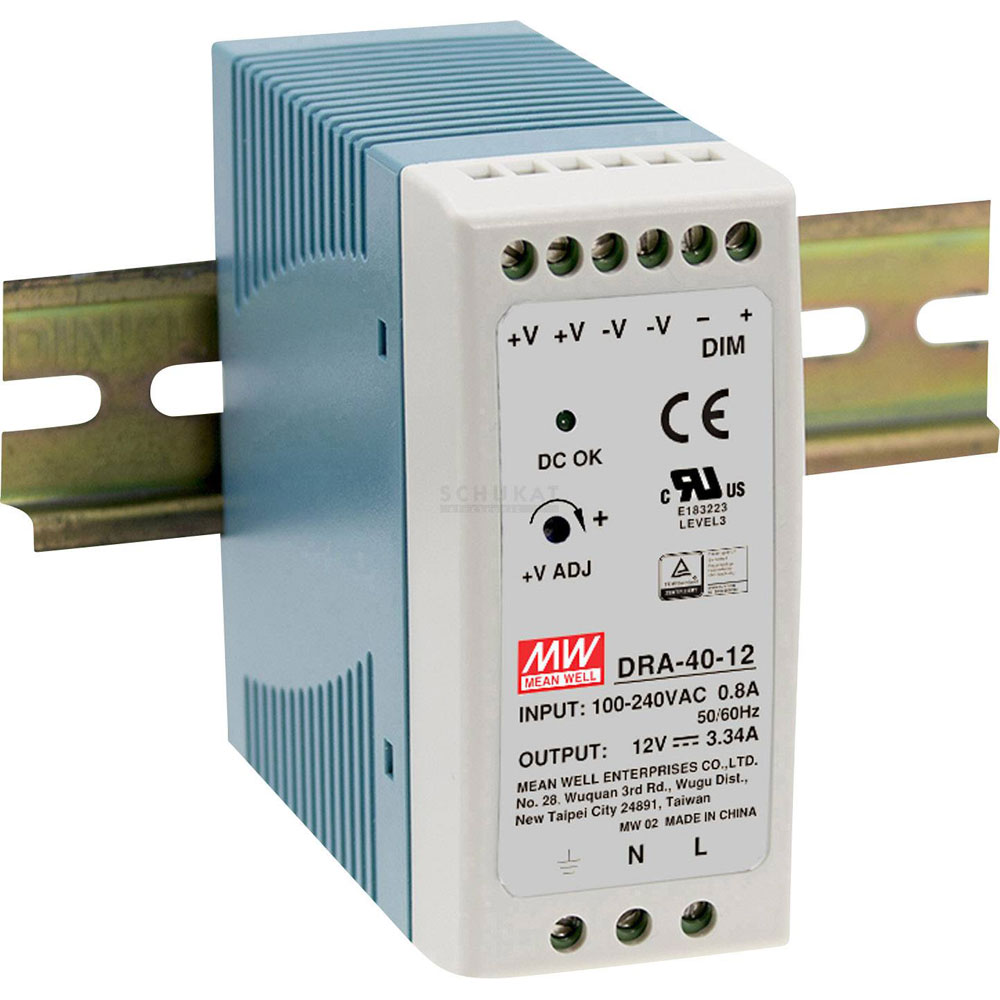

The Mean Well DRA-40-12 is a rail mounted power supply unit (PSU) designed for industrial applications. It delivers a voltage of 12 V DC and a current of 3.34 A, providing a power output of 40.08 W. This PSU is ideal for mounting on DIN rails in control panels and distribution boxes, offering reliable power supply in compact and modular installations.
Type Rail mounted PSU (DIN)
Output Voltage 12V DC
Output Current 3.34A
Number of Outputs 1
Power Rating 40.08W
Connection Screw terminal
Dim (L x W x H) 40 x 100 x 90 mm
Height 90mm
Input Voltage 90-264 V/AC 47-63Hz
Inputs 90-264 V/AC 127-370 V/DC
Length 40mm
Max. output current 3.34A
Max. temperature +70°C
Min. temperature -30°C
Misc Attribute 2 Pulsed
MTBF 439300h
Output type (power supply units) Adjustable
Phases 1
PSU features Adjustable voltage output
Width 100mm
