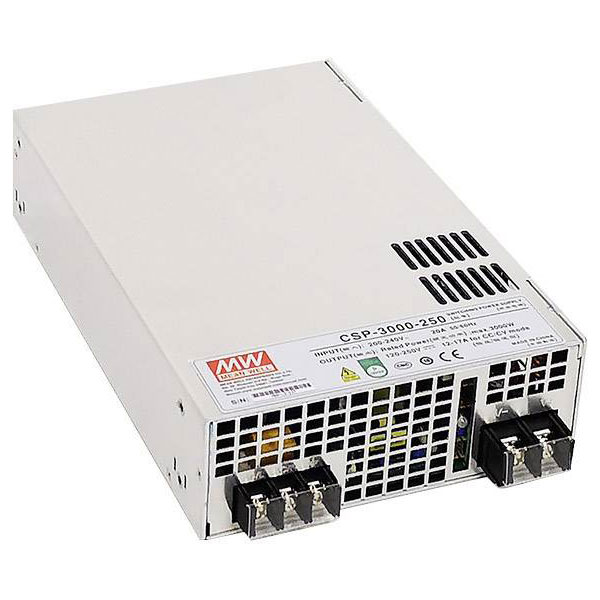

Mean Well CSP-3000-250 Power Supply 250V DC 12A 3000W 1pc

Mean Well
Standard range
Order Code:

05-0211

Brand: Mean Well MPN: CSP-3000-250
Qty Unit Price (Ex VAT)
1+ £606.77
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

The Mean Well CSP-3000-250 is a switch-mode power supply unit (SMPSU) that delivers a DC output of 250 V and 12 A, with a total power capacity of 3000 W. It is designed for printed circuit board mounting and is equipped with screw terminals for secure connections. Typical applications include industrial machinery, telecommunications, and any high-power electronic equipment requiring reliable and efficient power conversion.
Type SMPSU
Connection Screw terminal
Dim (L x W x H) 278 x 177.8 x 63.5 mm
Height 63.5mm
Length 278mm
Max. output current 12A
Misc Attribute 1 CSP-3000-250
Misc Attribute 2 Pulsed
Misc Attribute 3 closed
MTBF 223800h
No. of outputs 1
Operating temperature (max.) +60°C
Operating temperature (min.) -20°C
Output current (max.) - rounded 12A
Output voltage (max.) 250V DC
Output voltage (min.) 250V DC
PFC Yes
Power 3000W
Weight 4000g
Width 177.8mm
