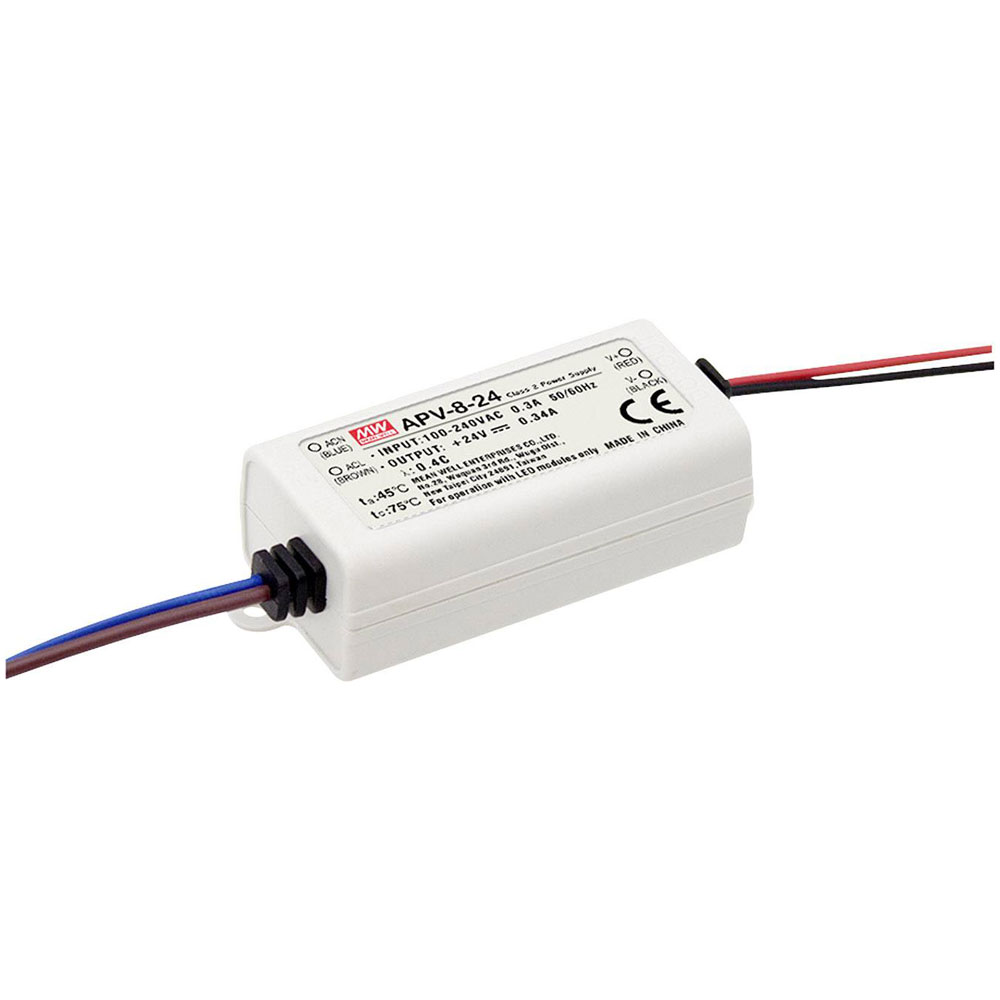

Mean Well APV-8-24 LED transformer 8W 24V DC IP30 non-dimmable

Mean Well
Order Code:

05-0203

Brand: Mean Well MPN: APV-8-24 EAN-13: 4021087029872
Qty Unit Price (Ex VAT)
1+ £8.73
5+ £8.26
10+ £7.86
25+ £7.42
50+ £7.11
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 22/12/2025

The Mean Well APV-8-24 is a non-dimmable LED power supply with a constant voltage of 24 V DC and an output power of 8 W. It features surge protection and an output current range of 0 to 0.34 A. This LED transformer is commonly used for LED strip lighting and other LED applications.
Type LED transformer
Output Voltage 24V DC
Max Output Power 8W
Output Current 0A
Input Voltage 264V AC
Connection Open end cable
Dimensions (L x W x H) 100 x 40 x 25 mm
Height 25mm
IP Rating IP42
Length 100mm
Max. output current 0.34A
Min. input voltage 90V AC
Misc Attribute 1 Constant voltage
Misc Attribute 2 Synchronised
Number of Inputs 1
Number of Outputs 1
Protection Class II
Width 40mm
