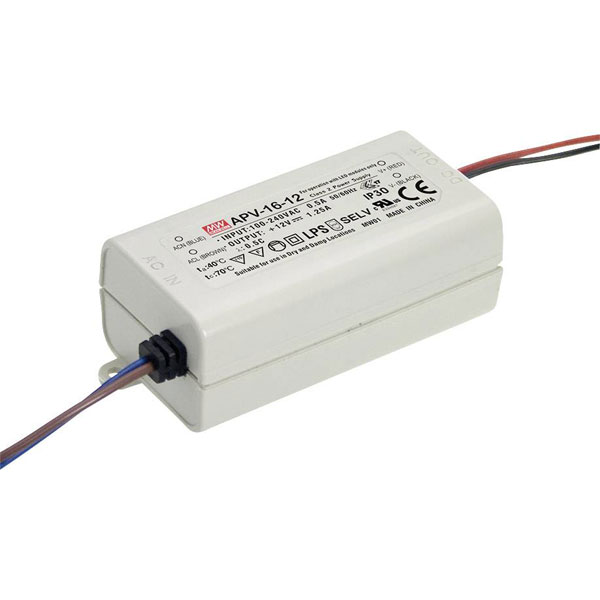

Mean Well APV-16-12 LED transformer 12V DC 15W 1.25A IP30 non-dimmable

Name: Mean Well APV-16-12 LED transformer 12V DC 15W 1.25A IP30 non-dimmable
Brand: Mean Well
Price: 15.39 GBP
Availability: InStock

Standard range

Order Code:

05-0191

Brand: Mean Well MPN: APV-16-12

RoHS Compliant
Country of Origin: China
Free UK shipping available
View Full Product Range (10)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£15.39
5+	£14.64
10+	£13.79
25+	£13.09
50+	£12.77

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

638 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

The Mean Well APV-16-12 LED transformer is designed to provide a constant 12 V DC output with a power rating of 15 W and current capacity of 0 - 1.25 A. It includes surge protection and is suitable for powering LED strips or other LED installations that require a non-dimmable power source. Ideal for indoor use, this transformer features an open end cable for easy connection.

Type	LED transformer
Connection	Open end cable
Dim	(L x W x H) 77 x 40 x 29 mm
Height	29mm
Input voltage (max.)	264V AC
IP rating	IP30
Length	77mm
Max. output current	1.25A
Max. power	15W
Min. input voltage	90V AC
Misc Attribute 1	Constant voltage
Misc Attribute 2	Synchronised
No. of inputs	1
No. of outputs	1
Output current (max.) - rounded	1.25A
Output current (min.)	0A
Output voltage (max.)	12V DC
Power range	15 W (max)
Protection class	II
Weight	100g
Width	40mm
