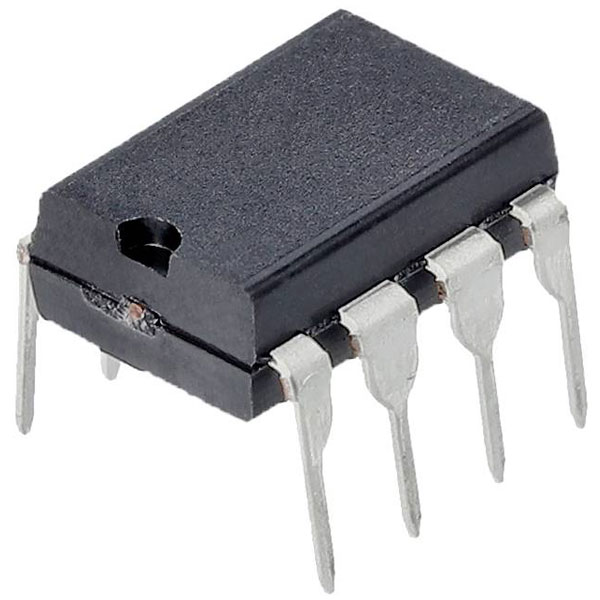

Maxim Integrated Ds1307+ Timer IC Real Time Clock Tube Clock Timing Ics

Maxim Integrated's DS1307+ is a real-time clock (RTC) integrated circuit designed to provide timekeeping functions in electronic systems. This IC is characterised by its low power consumption and operates with a supply voltage range from 4.5V to 5.5V. It features a 56-byte, battery-backed RAM for non-volatile data storage. The DS1307+ maintains accurate timekeeping of seconds, minutes, hours, day, date, month, and year with leap-year compensation valid up to 2100. It communicates via an I2C serial interface, making it suitable for applications in embedded systems, digital clocks, and other systems requiring timekeeping capability.

Type	Timer IC t- real time clock
Clock IC Type	Real Time
Supply Voltage	5.5V
Package Style	Through Hole
Operating Temperature	70°C
Mounting Type	Through-hole mounting
Supply Voltage (analogue) (min.)	4.5V
