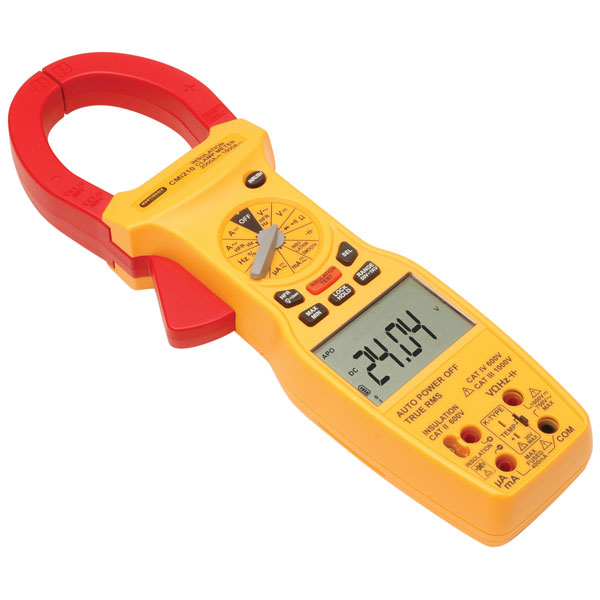

Martindale CMI210 AC/DC TRMS Insulation Clamp Multimeter

The Martindale CMi210 is a unique insulation clamp meter for the installation, testing and maintenance of domestic and industrial installations. The high specification clamp meter can perform insulation tests to 6GΩ with 5 test voltages from 50V to 1000V.

The clamp provides true RMS measurement of AC current up to 1500A and AC voltage to 750V. It will also measure DC current to 2000A and DC voltage to 1000V. The CMi210 has all the same test functions you would expect to find on a high specification multimeter with the added benefit of temperature measurement.

• Features include:
• True RMS AC current to 1500A
• DC current to 2000A
• True RMS AC voltage to 750V
• DC voltage to 1000V
• Insulation resistance to 6GΩ with test voltages to 1000V
• Temperature (Type K thermocouple)
• Display hold
• Max/Min indication
• Selectable high frequency rejection
• Live circuit detection for insulation resistance
• Measurement lock for insulation resistance
• Auto or manual ranging
• Auto power-off
• Martindale type CMi210
