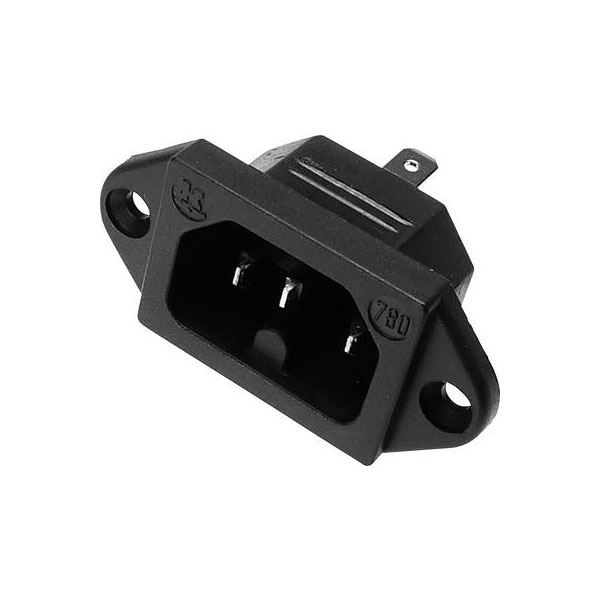

Martin Kaiser 780/sw Hot Wire Connector 2+PE Pins 10A Vertical Mount

The Martin Kaiser 780/sw hot wire connector is a vertical mount plug with 2 + PE pins, designed for high-temperature applications. It is a black mains connector suited for housing installations with screw fixing. This component is ideal for use in power distribution systems and electronic devices requiring a robust power plug.

Type	Hot wire connector
Current Rating	10A
Mounting Type	Plug, vertical mount
Switch	No
Colour	Black
Leading Contact (Pe)	Yes
Material (details)	Polypropylene (V2)
Misc Attribute 1	Housing installation, screw fixing
Nominal Current	10A
Nominal Voltage	250V
Number of Pins	2
Pins	3
Plug standard (IEC 60320)	C16
Series	780
Temperature Range	120°C
Total no. of pins	2 + PE
