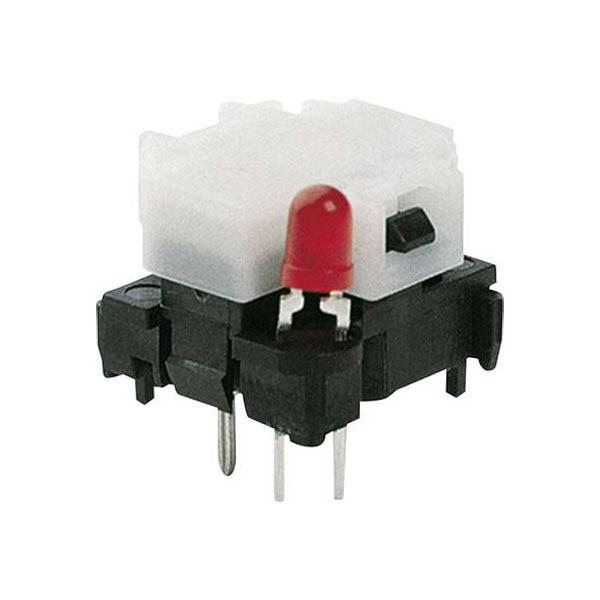

Marquardt 6425.4111 Key Switch 100mA 28V SPNO PCB Red LED 16mm No Cap

A momentary key switch from Marquardt for use in IC technology, microcomputers, measuring and controlling devices, electronic games, switching and control systems, household machines or telephone intercom systems. Its small dimensions allow it to be used in keypads with a minimum spacing of 15.5mm.

• Bulb type: LED
• Casing/button colour: Black
• Connection: PCB pins
• Contact material: Au (gold)
• Contact type: 1 maker
• L x W x H 14.8 x 13.5 x 10.7mm
• Functions: momentary
• Light colour: Red
• Lighting type: spot lighting
• Shape (type): Division 16mm
• Switch position: 1 x Off/(On)
• Switch type: Pushbutton
• Switching current (max.): 0.1A
• Switching voltage: 28V
• Manufacturer's part 6425.4111

In the description of switching position, the value in brackets is intended to show the switch function.

Type	Key switch
Contact Configuration	Off / (on)
Switch Function	Off-(On)
Current Rating	0.1A
Mounting	PCB
Illumination	Red
Panel Cutout Dimensions	16
Connection	PCB pins
Illumination Type	LED
