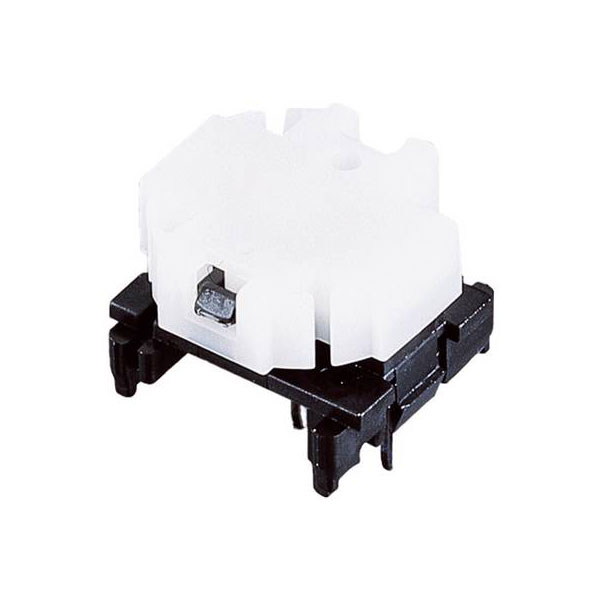

Marquardt 6425.1101 Key Switch 100mA 28V SPNO PCB Parallel Guide 19mm No Cap

A momentary key switch from Marquardt for use in IC technology, microcomputers, measuring and controlling devices, electronic games, switching and control systems, household machines or telephone intercom systems. Its small dimensions allow it to be used in keypads with a minimum spacing of 15.5mm.

• Casing/button colour: Black White
• Compatible with: Parallel guide
• Connection: PCB pins
• Contact material: Au (gold)
• Contact type: 1 maker
• L x W x H 14.8 x 13.5 x 10.7mm
• Functions: momentary
• Lighting type: none
• Shape (type): Division ≥ 16mm
• Switch position: 1 x Off/(On)
• Switch type: Pushbutton
• Switching current (max.): 0.1A
• Switching voltage: 28 V
• Manufacturer's part 6425.1101

Note: In the description of switching position, the value in brackets is intended to show the switch function.
