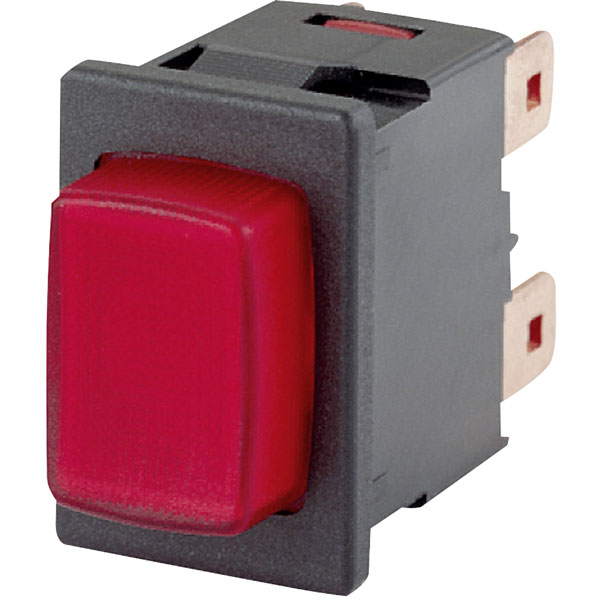

Marquardt 1686.1101 Illuminated Pushbutton 16A IP40 SPST On-Off Red

A pushbutton from Marquardt with a tried-and-tested double lifting contact system and high switching capacity. This is an illuminated version.

• Approvals:: ENEC UL CSA
• Bulb type: Glow lamp
• Casing/button colour: Black
• Connection: CEE plug 4.8mm
• Contact material: Ag (Silver)
• Contact type: 1 breaker
• L x W 21 x 15mm
• Front panel cut-out: 19.8 x 12.9mm
• Functions: latch
• Light colour: Red
• Lighting type: area illumination
• Protection type: IP40
• Recess depth: 18.8mm
• Switch features: protuding
• Switch position: 1 x On/Off
• Switch type: Pushbutton switch
• Switching current (max.): 16A
• Switching voltage: 250V AC
• Manufacturer's part 1686.1101

In the description of switching position, the value in brackets is intended to show the switch function.

Type	Push-button
Contact Configuration	Off / on
Switch Function	On/Off
Current Rating	16A
Mounting	Panel
Illumination	Illuminated
Panel Cutout Dimensions	N/A
Button Colour	Red
IP Rating	IP40
Recess depth	18.8mm
